ISO5 Isolator
Product features

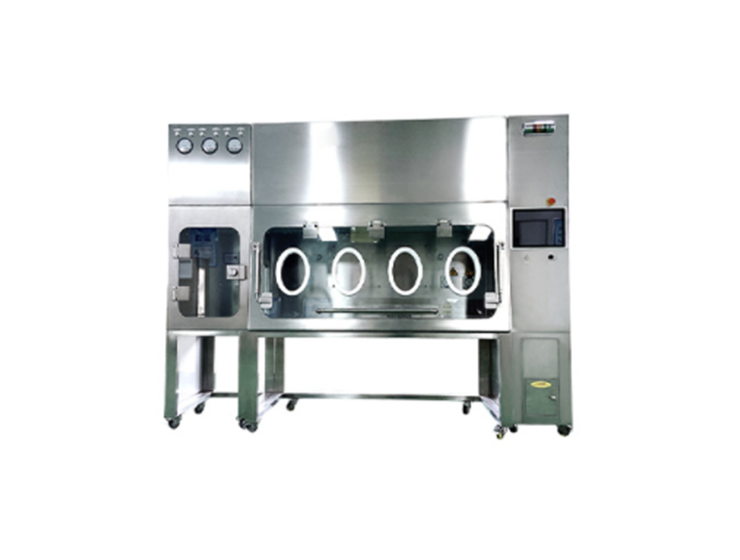

Class A environment, sterile and dust-free
Dedicated disinfection system, safe isolation
Hermetic design, leakage-free

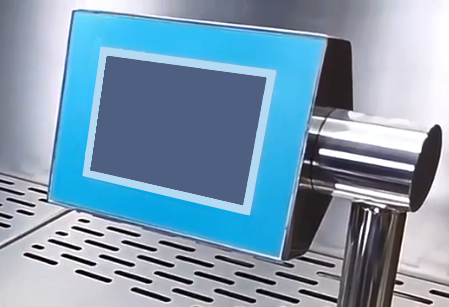

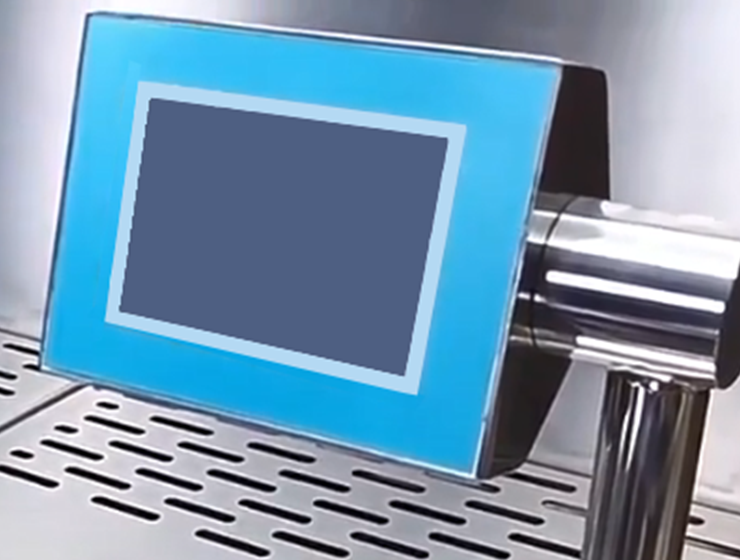

Smart control panel
Automatic leakage detection, smart sterilization process
Fully sealed for safety of products and operators

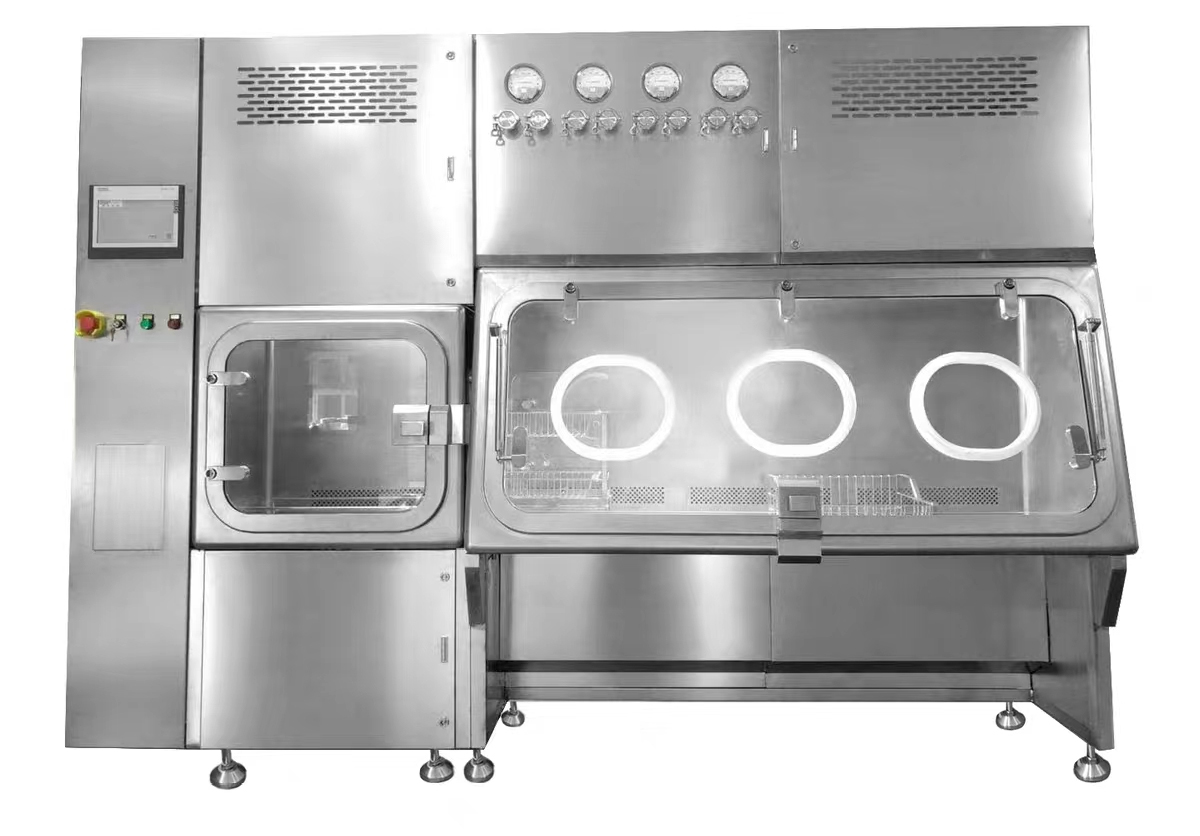

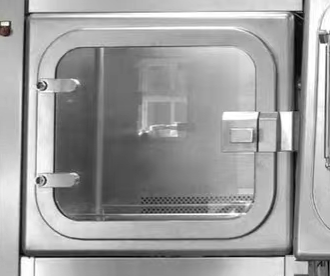

Airlock Pass Box
Doors not opening during operation to protect personnel and material
Hydrogen peroxide sterilization and decomposition system
Effective sterilization and residue removal, safety for both products and operators

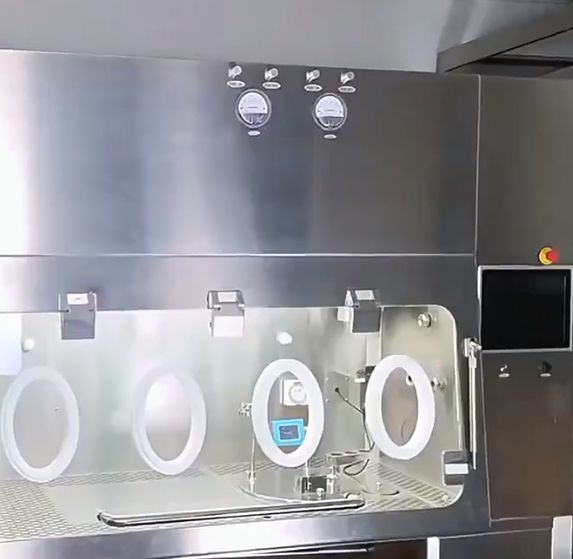

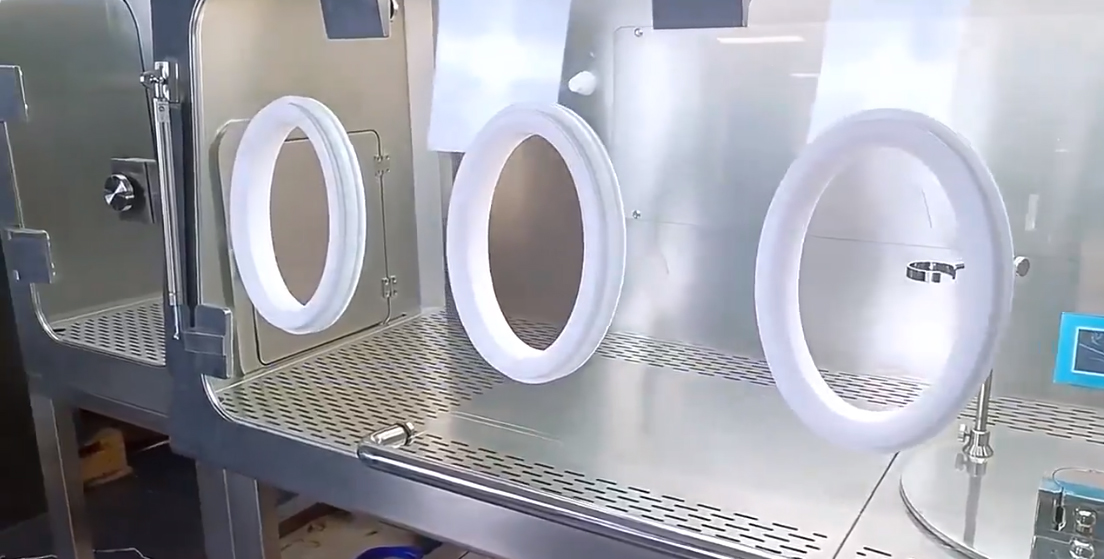

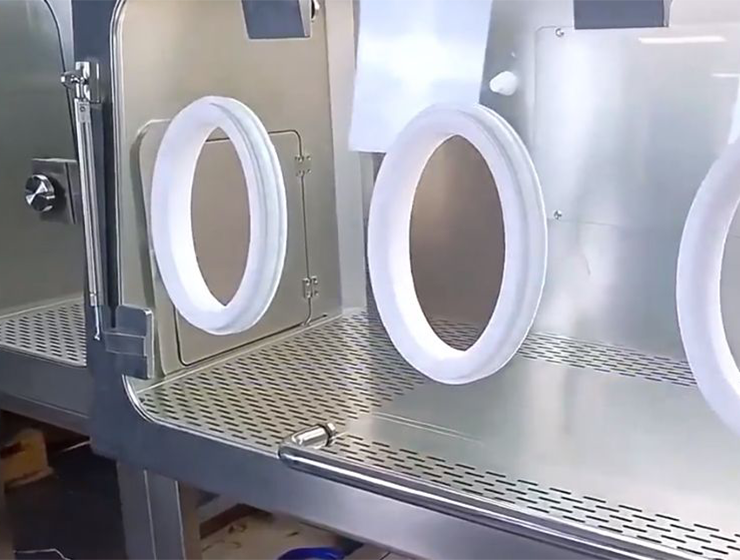

Rubber glove for non-touch operation
Anti-bacteria surface finish, extra guarantee

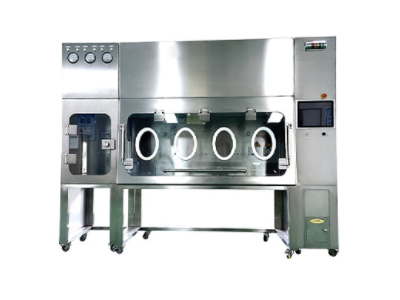

Aseptic ISO5 Isolator is a closed system
that isolates microorganism contamination and achieve non-touch operation for operators.
The isolator can maintain class A environment and boasts a dedicated hydrogen peroxide
sterilizer that can disinfect the materials and also effectively remove all the residues.
The isolator is widely used in pharmaceutical, medical, health, biological test and other relevant industries.

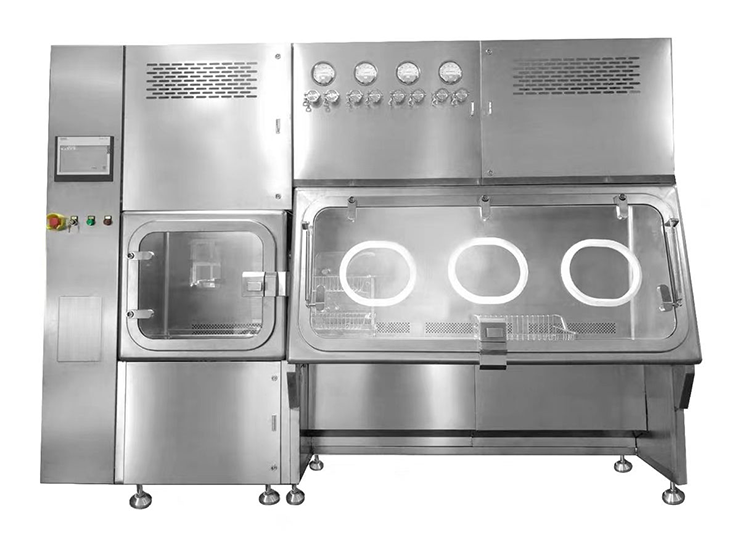

Cell culture, isolation, all effective Support custom, high adaptation

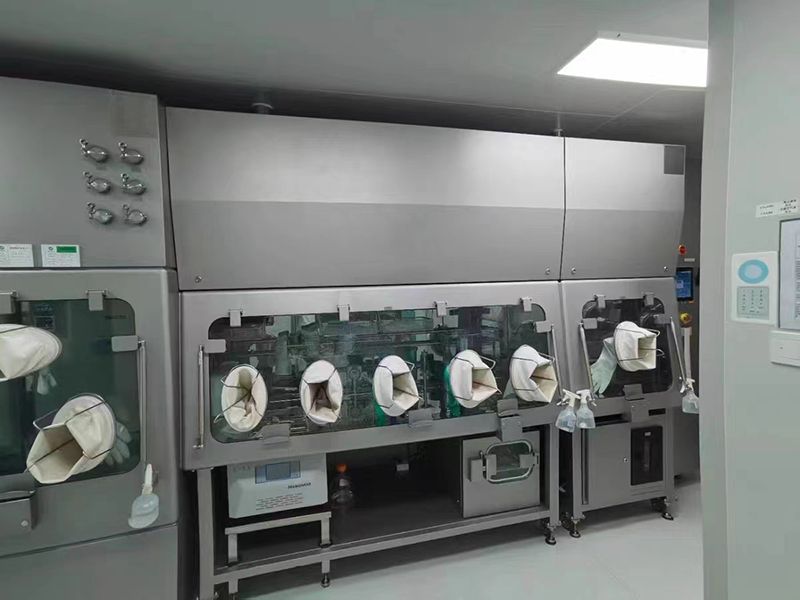

Airborne particles or microbes Collected and detected real-time
Specification
| Model | STI-1200 | STI-1200/600 | STI-1500D/600 | STI-1800 | STI-1800/600 | STI-1800/PB600 |
| External Size(W*D*H mm) | 1600*880*2250 | 1600*880*2250 | 2100*1200*2250 | 2200*880*2250 | 2200*880*2250 | 2200*880*2250 |
| Chamber Size (W*D*H mm) | 1195*680*700 | 1195*680*700 | 1495*1195*700 | 1795*680*700 | 1795*680*700 | 1795*680*700 |
| Pass Box Size(mm) | N/A | 600*680*700 | 600*680*700 | N/A | 600*680*700 | 600*680*700 |
| Power(V/KW) | AC220/3.5 | AC220/3.5 | AC220/3.5 | AC220/3.5 | AC220/3.5 | AC220/3.5 |
| Compressed Air | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa |
| Material | Outer SUS304, Inner SUS316L | |||||
| Cleanliness | Class A | Class A | Class A | Class A | Class A | Class A |
| Air Velocity | 0.45m/s±20% | |||||
| Leakage | ≤0.5%VOL/h（below 100Pa） | |||||
| Air Exhaust | ≥300m³/h | |||||
| Pressure Range | -100Pa~+100Pa | |||||
| Sterilization | 6-log | |||||
| VHP residue removal | ≤1PPM | |||||
| Light | ≧350LUX | |||||
| Remark | Single chamber | Double chamber | Double sided Double chamber | Single chamber | Double chamber | Double chamber |
Gallery
ISO 5 isolator for pharmaceutical clean room 1
ISO 5 isolator for pharmaceutical clean room 2
ISO 5 isolator for pharmaceutical clean room 3
ISO 5 isolator for pharmaceutical clean room 4
ISO 5 isolator for pharmaceutical clean room 5
ISO 5 isolator for pharmaceutical clean room 6
ISO 5 isolator for pharmaceutical clean room 7
