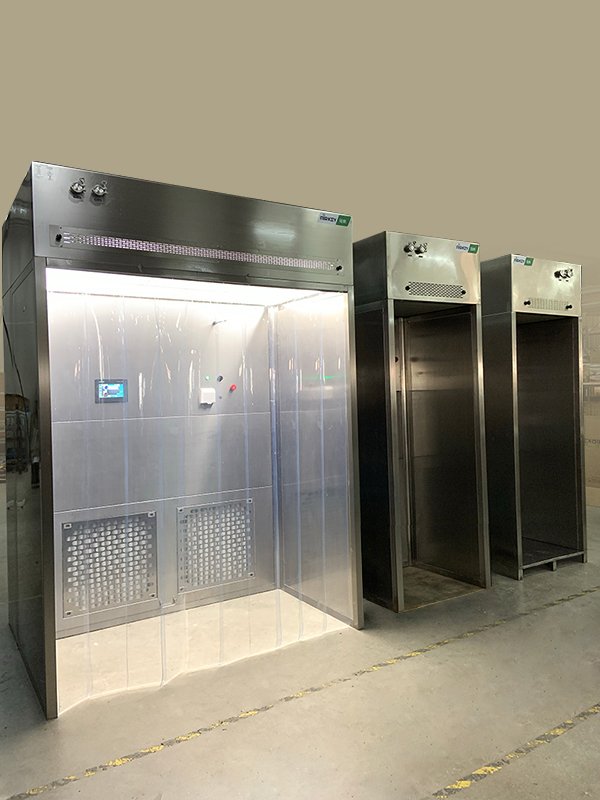

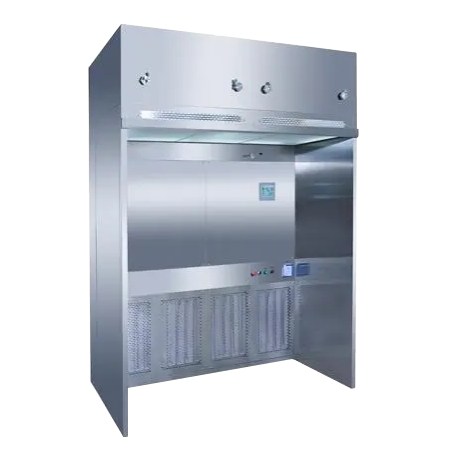

Dispensing Booth
Product features

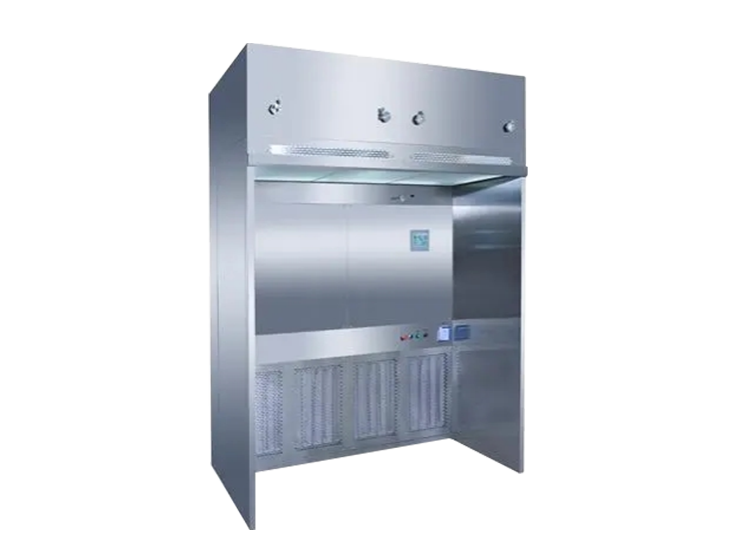

3-step filtration system, safe dispensing
Smart control, real-time monitoring

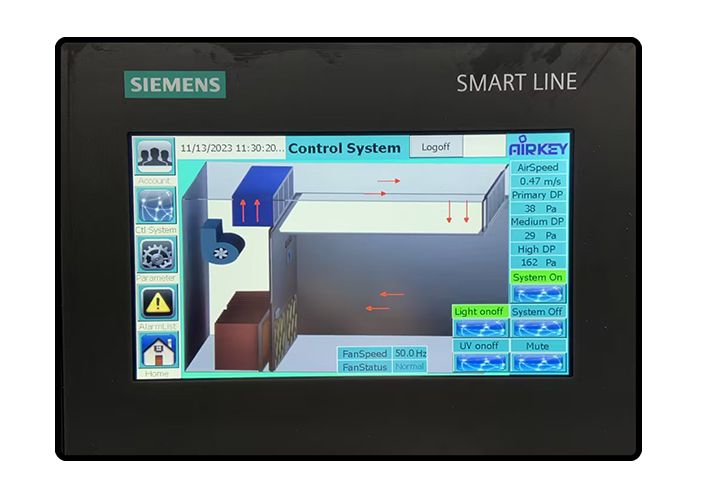

LCD control panel
Efficient operation with smart control
Ensuring operational and occupational safety.

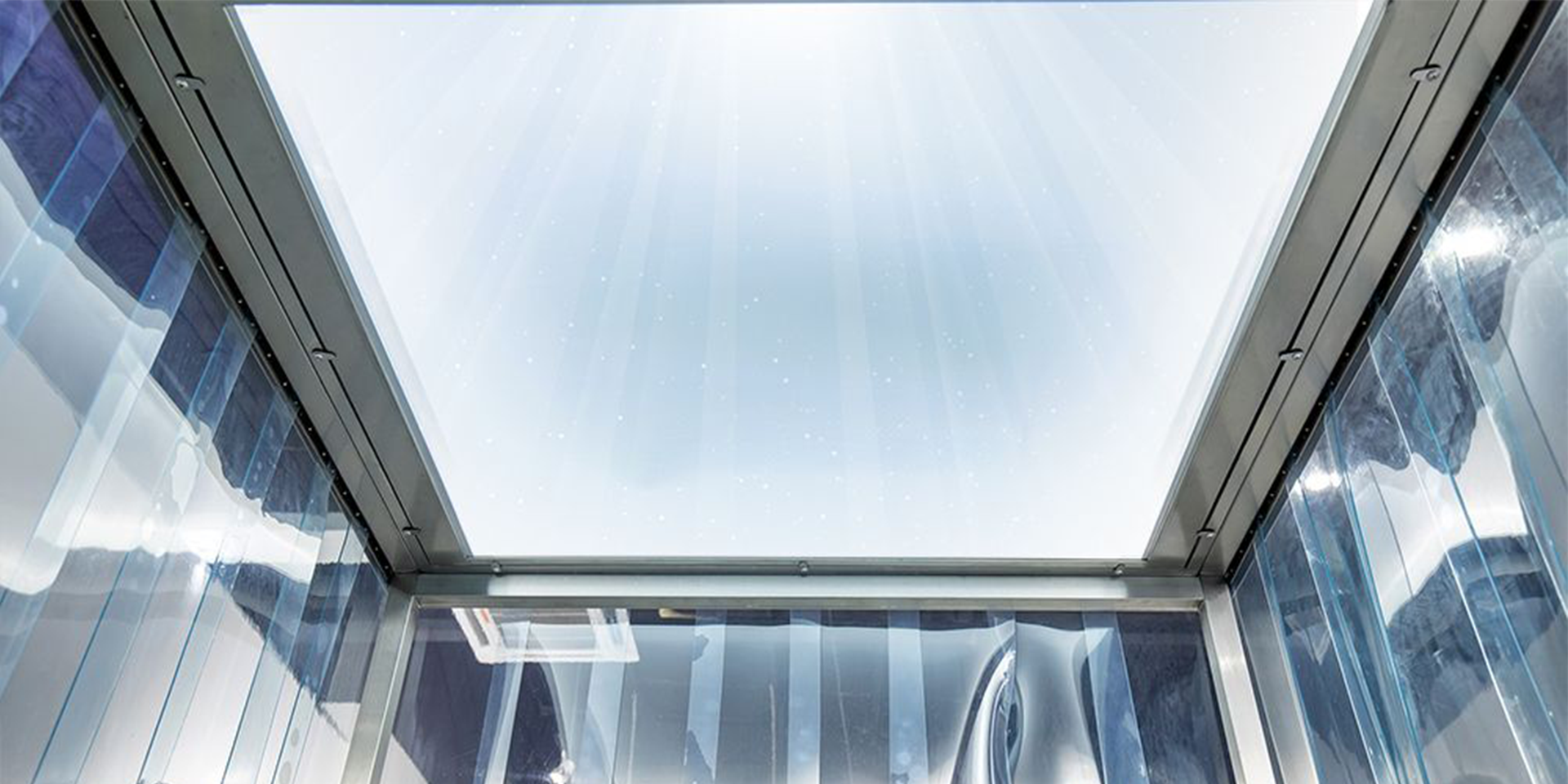

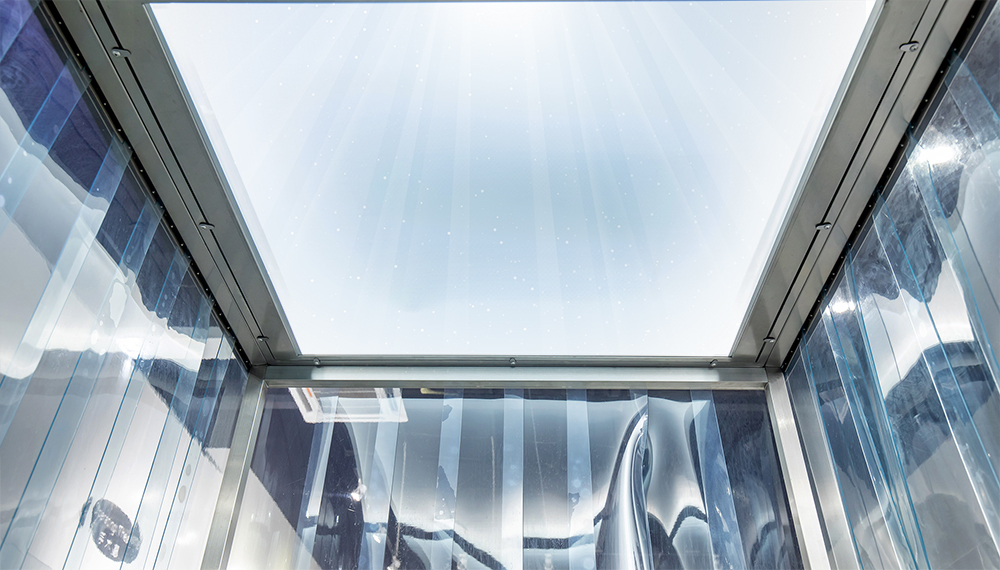

Air distribution panel
Ultra-filtered clean air, uniform and even
Precisely maintain class A space

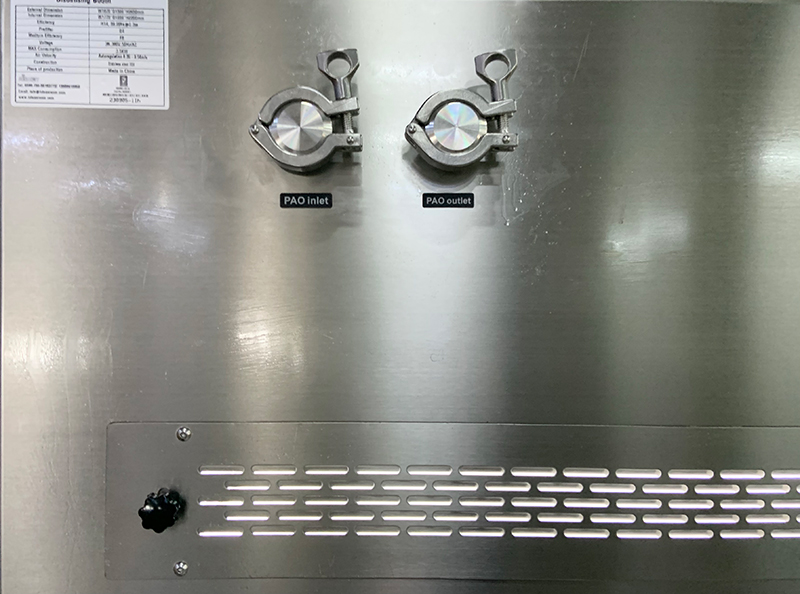

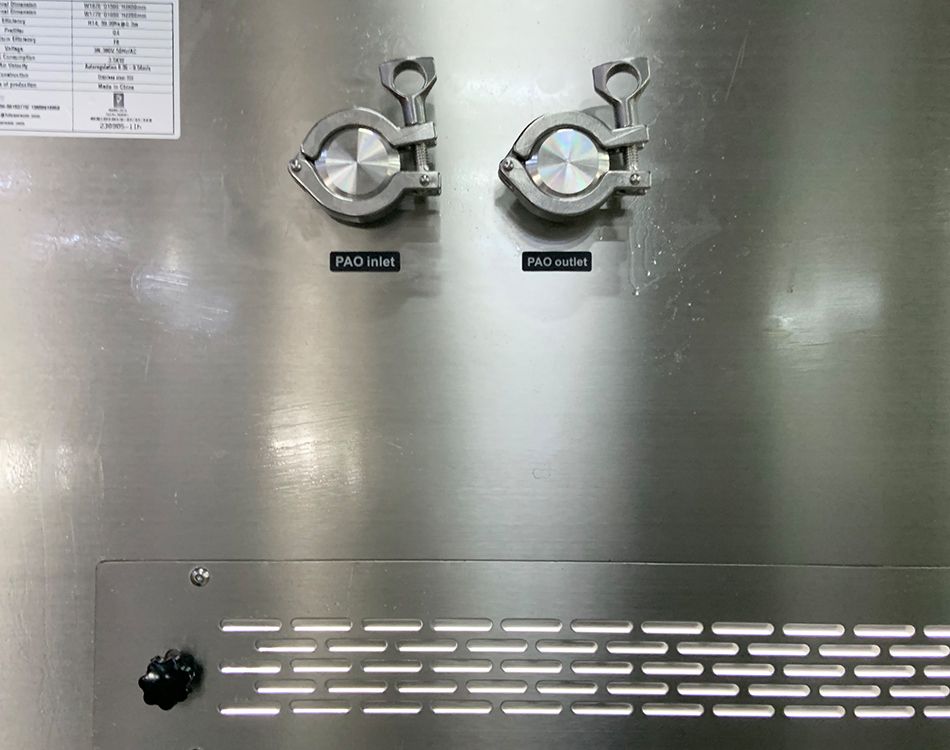

DOP test ports
Leakage test before delivery
Ensuring compliance with GMP
4Q documents optional

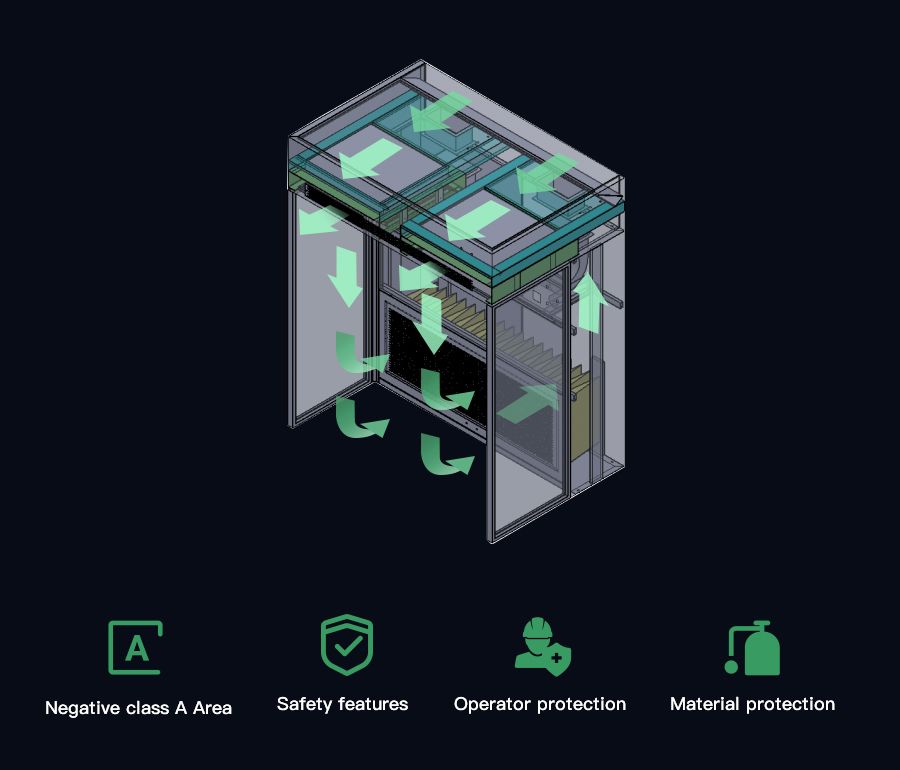

Operating Principle
The dispensing booth is designed to provide unidirectional downflow to create class A environment for weighing,
dispensing and sampling of powered and non-powdered material so that contamination and cross contamination
can be prevented. The supply and exhaust air pass through prefilter, mid filter and final HEPA filter for purification
and provide protection for both operators and products. A small percentage of air is discharged from the booth
through the bleed exhaust port to maintain the working space under negative pressure,
minimizing airborne contamination breakout.

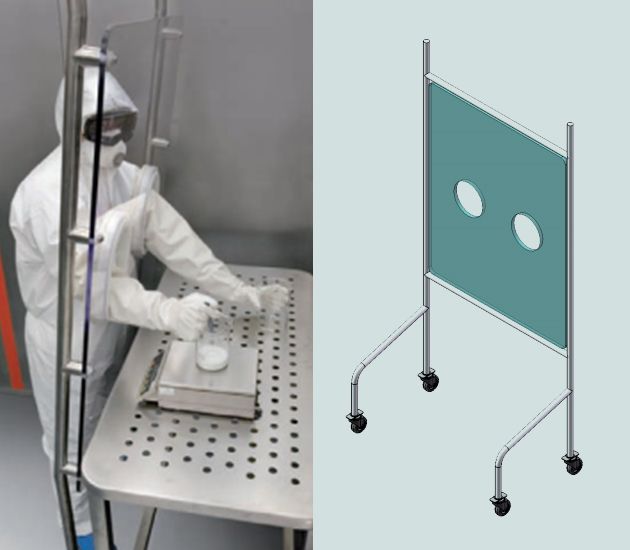

Mobile containment screen with gloves optional Safe operation, extra protection
Support custom Flexible options for dispensing process

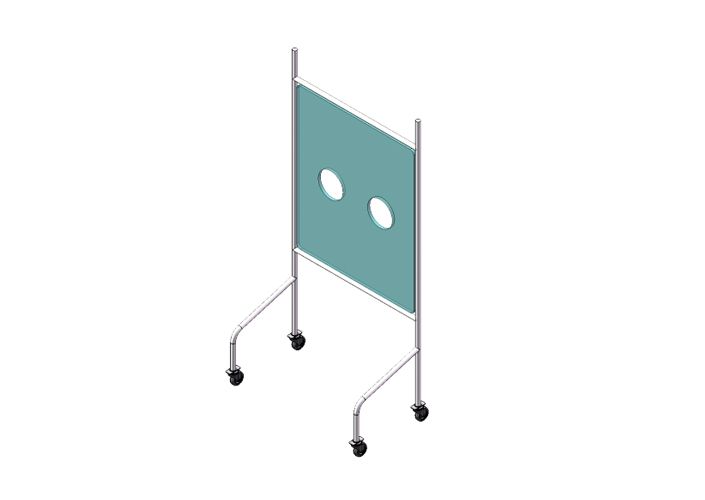

High Containment Screen
Mobile and provides a second barrier between the operator and the product

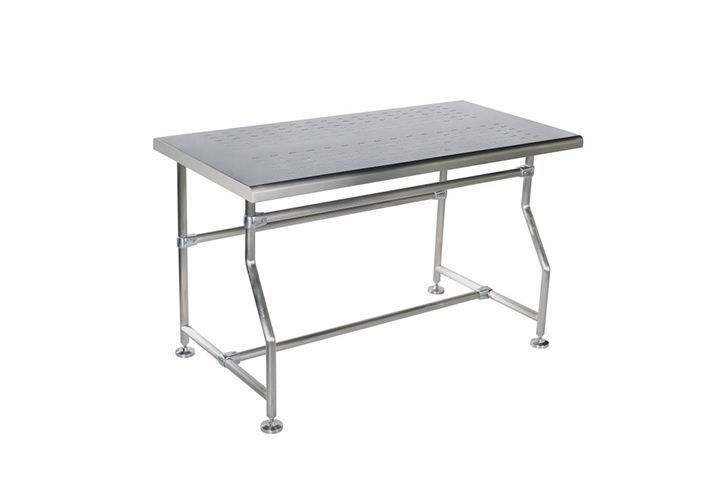

Perforated Table
Wide range of perforated working tables.

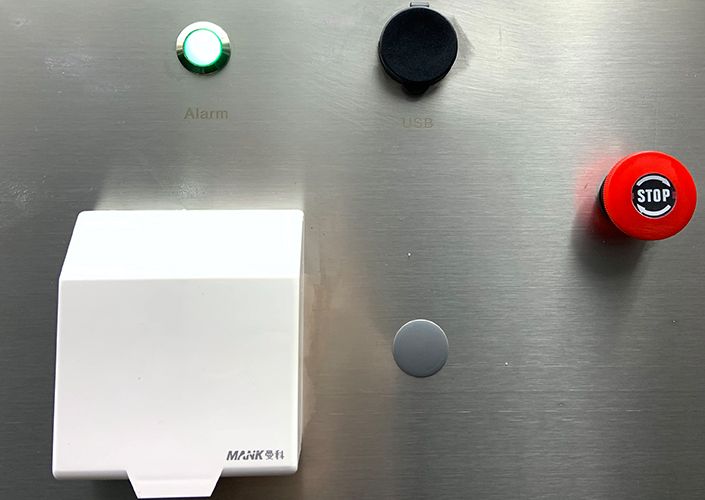

Electrical Outlets
EU/US/AU/UK standard all optional

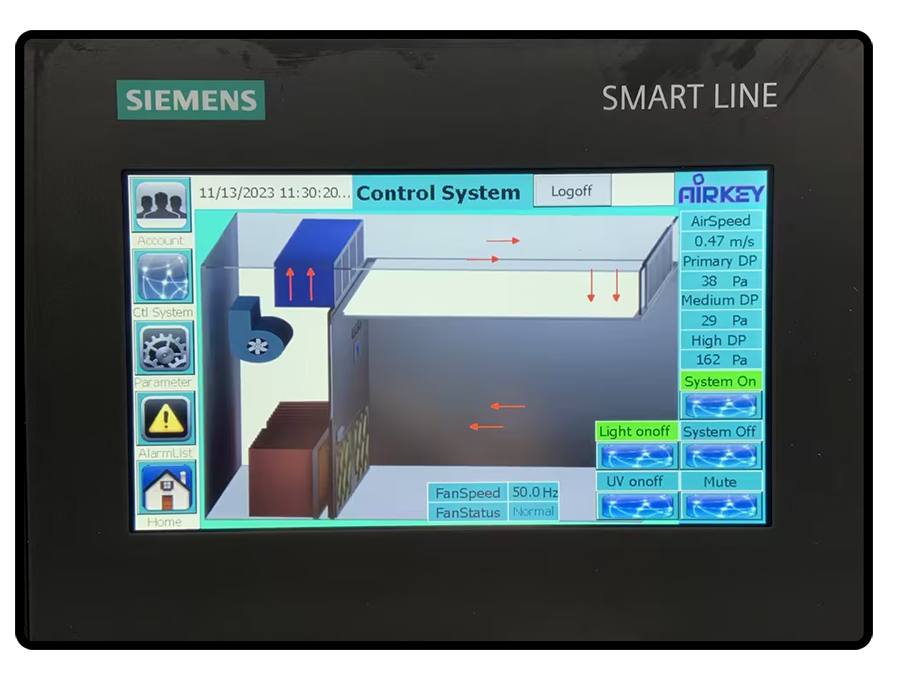

PLC control Panel
Programmable PLC control panel optional

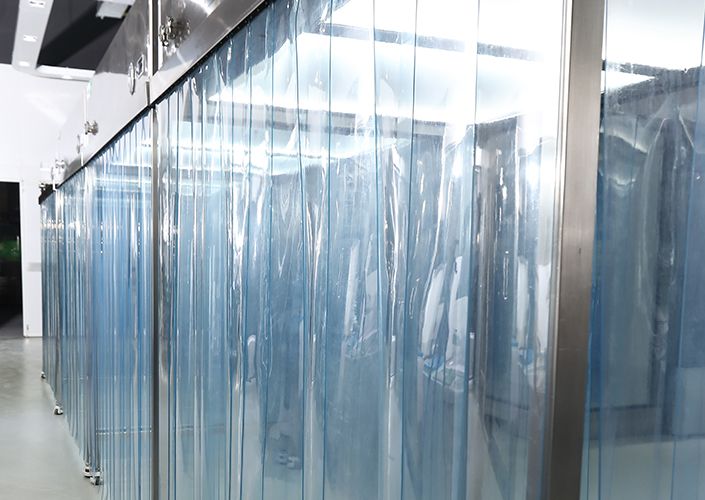

PVC Curtain
Soft wall PVC curtain available
Specification
| Model | Unit | LDB-1200 | LDB-1800 | LDB-2400 | |
| Working Area Size | L | mm | 1200 | 1800 | 2400 |
| W | 1200 | 1800 | 1800 | ||
| H | 2000 | 2000 | 2000 | ||
| Class | ISO | ISO 5 (Class A) | |||
| Air Supply | m³/h | 2300 | 5200 | 7000 | |
| Exhaust Air | m³/h | 410 | 930 | 1240 | |
| Total Air Volume | m³/h | 2750 | 6200 | 8250 | |
| Air Velocity | m/s | 0.36-0.54 | |||
| Noise | dBA | ≤75 | |||
| Lux | Lux | ≥300 | |||
| Filter | G4 | Non-woven pre-filter 95%@5μm | |||
| F9 | Middle efficiency bag filter 95%@1-5μm | ||||
| H14 | Gel-sealed fiber glass H14 hepa filter
99.995%@0.3μm(EN-1822) for both air supply and exhaust outlets |
||||
| Power | 3N/380V/50Hz | ||||
| Fan | High efficient backward centrifugal fan | ||||
