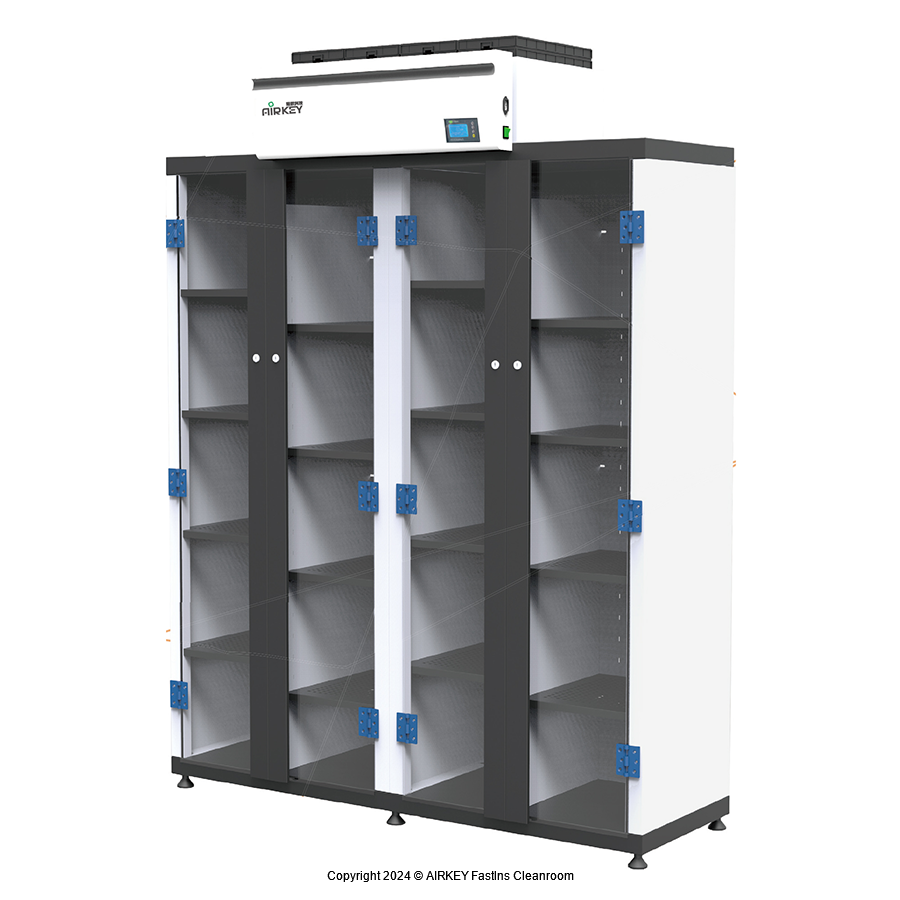

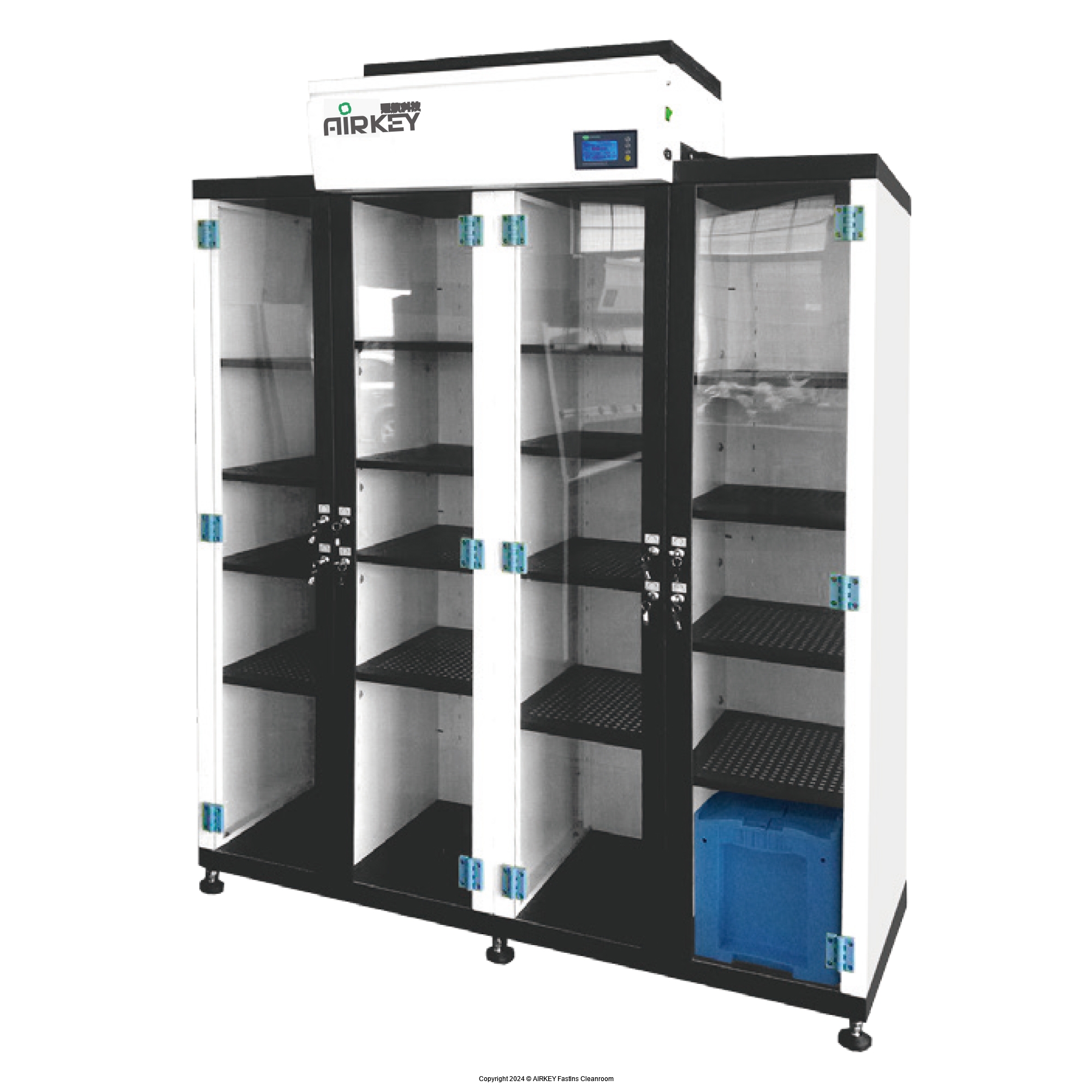

Filtration Medicine Cabinet Hood
Product features
Safe medicine storage without a shadow of concern
Molecular filter purifies the airflow, preventing chemical escape
Real-time monitoring of chemical concentration changes

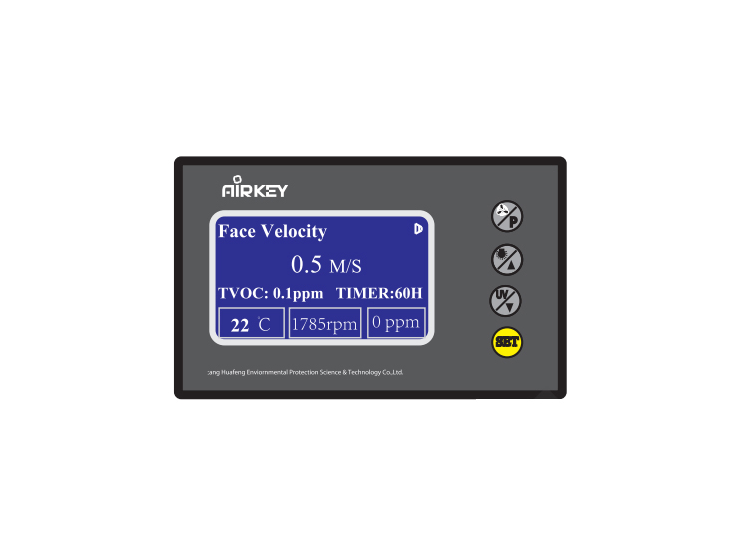

Intelligent Display Screen
TVOC value monitoring, safe medicine storage
Real-time airflow velocity display
Filter life monitoring, replace right on time

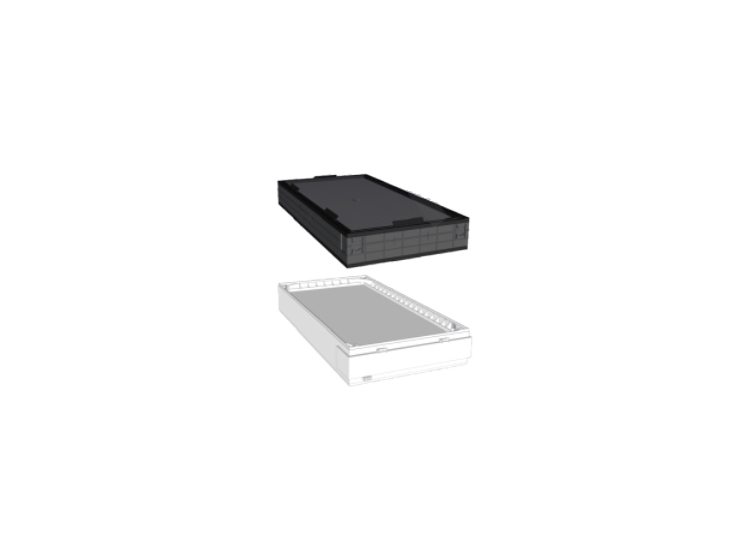

Diverse filter options
Molecular filters, effectively adsorbing chemicals
Purification filters, removing dust contamination
Adjustable shelves, supporting up to 100kg/shelf, equipped
with even ventilation holes
Ample space, safe storage
Wheels optional for free movement

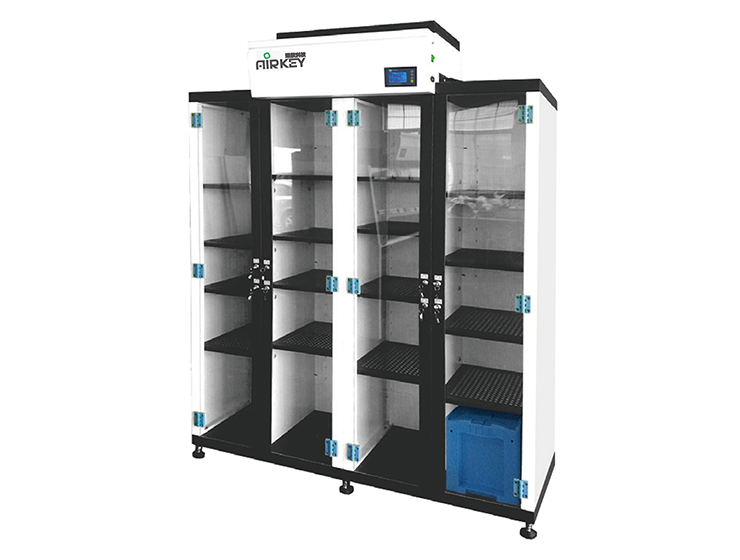

Multiple styles and options
Choose the right Medicine Cabinet based on demands
Specification
| Model | NS800 | NS800-S | NS1000 | NS1200 | NS1600 | MS820 |
| External Dimension | W800*D525*H1960~2362mm | W800*D525*H1960~2362mm | W1000*D525*H1960~2362mm | W1200*D525*H1960~2362mm | W1600*D525*H1960~2362mm | W814*D350*H825mm |
| Internal Dimension | W796*D470*H1752mm | W796*D470*H1752mm | W996*D470*H1752mm | W1196*D470*H1752mm | W1596*D470*H1752mm | W810*D317*H550mm |
| Capacity(500ml/1L) | 240/130 | 240/130 | 300/160 | 360/190 | 480/260 | 48/36 |
| Air Volume(m3/h) | 240 | 240 | 240 | 240 | 240 | 90 |
| Noise(dB) | ≤41.6 | ≤41.6 | ≤43 | ≤43 | ≤45 | ≤45 |
| Shelf Load-bearing(KG) | 100 | 100 | 100 | 100 | 100 | 100 |
| Drip Pan Volume | 6 | 6 | 6 | 6 | 12 | 8 |
| Air Exchange Rate(times/hour) | 410 | 410 | 320 | 270 | 205 | 600 |
| Voltage | 1P/220V/50Hz or 1P/110V/60Hz | |||||
| Temperature Monitoring | ● | ● | ● | ● | ● | ● |
| Filter Life Countdown | ● | ● | ● | ● | ● | ● |
| Indoor TVOC Monitoring | ○ | ○ | ○ | ○ | ○ | ○ |
| Note： ● refers to standard configuration ○ refers to optional configuration |
||||||
