Product features

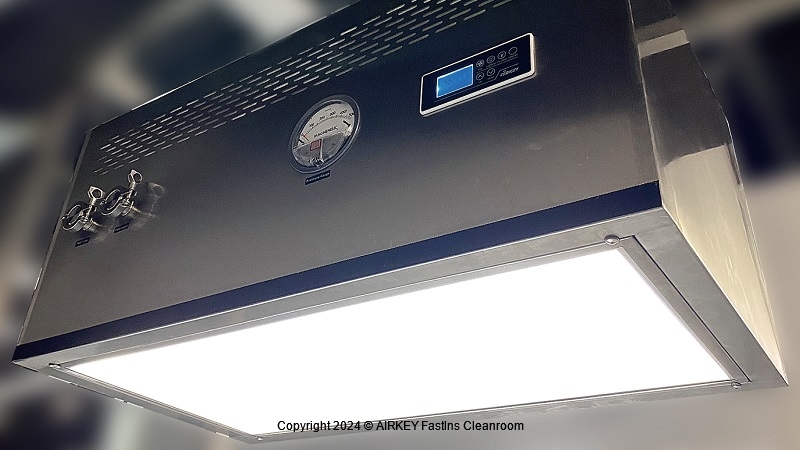

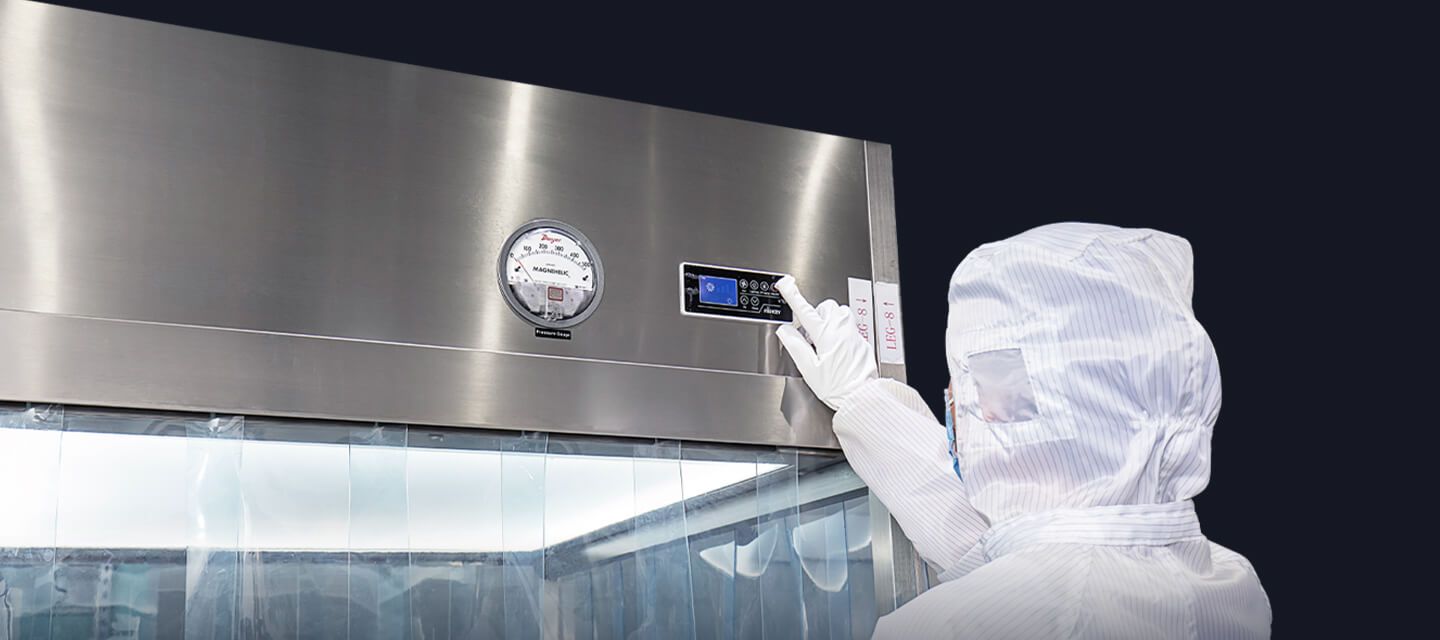

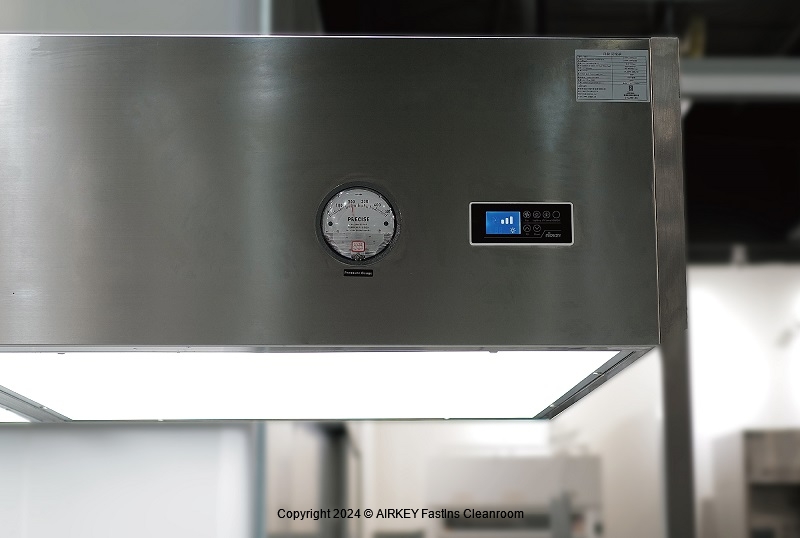

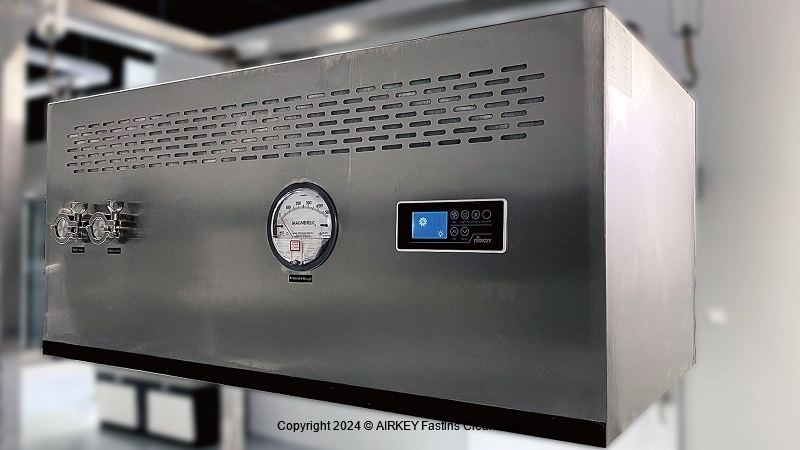

Control panel
Control panel for air regulation;
Touch screen optional
SS structure Anti -corrosion easy to clean

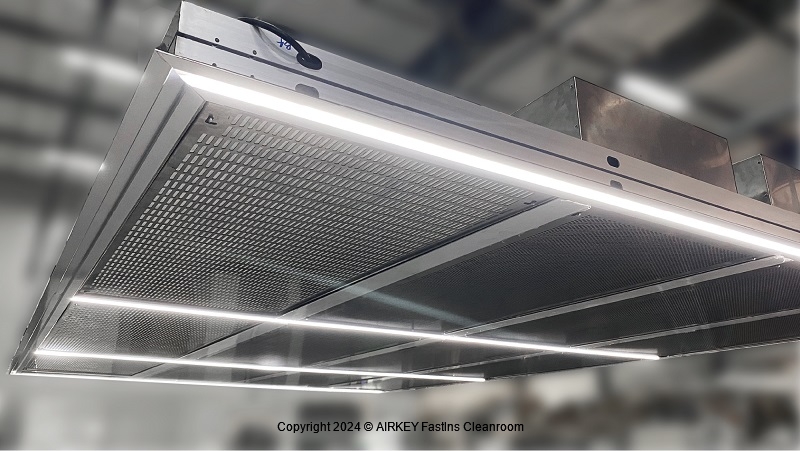

Built-in strip light
Simple assembly and operation

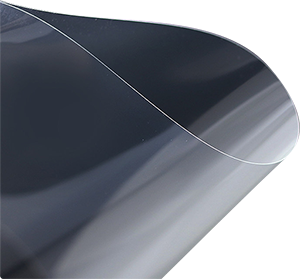

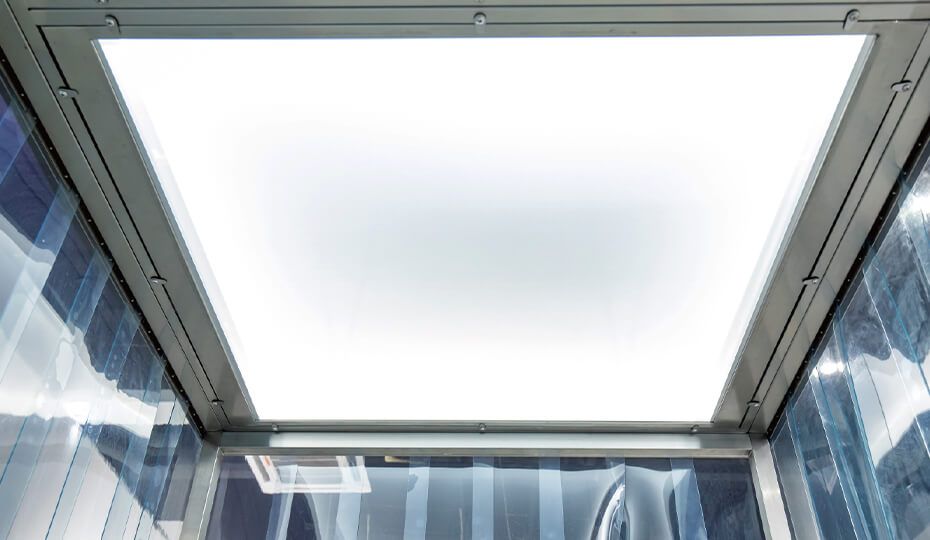

Polymer homogenous flow film
avoid turbulent flow
Maintain uniform ISO5 class

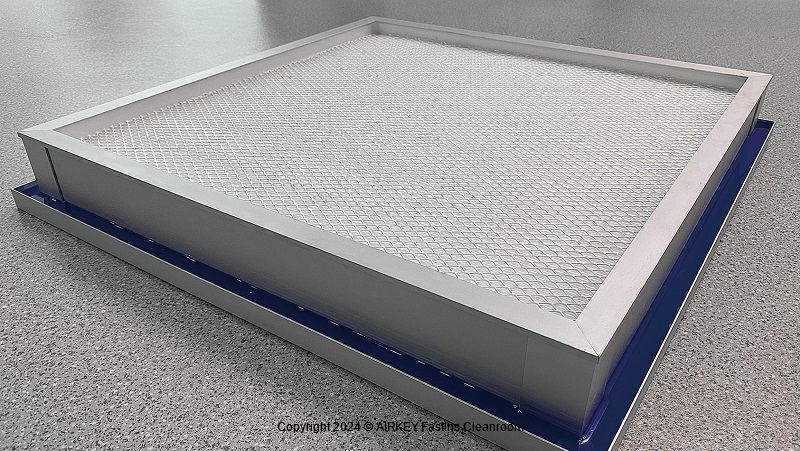

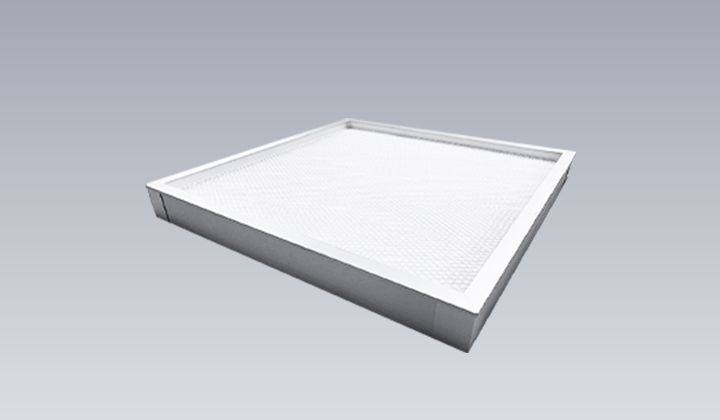

Built-in gel-sealed HEPA filter in laminar flow hood equipped with PAO port
No fear of detection, quality control, run at easement

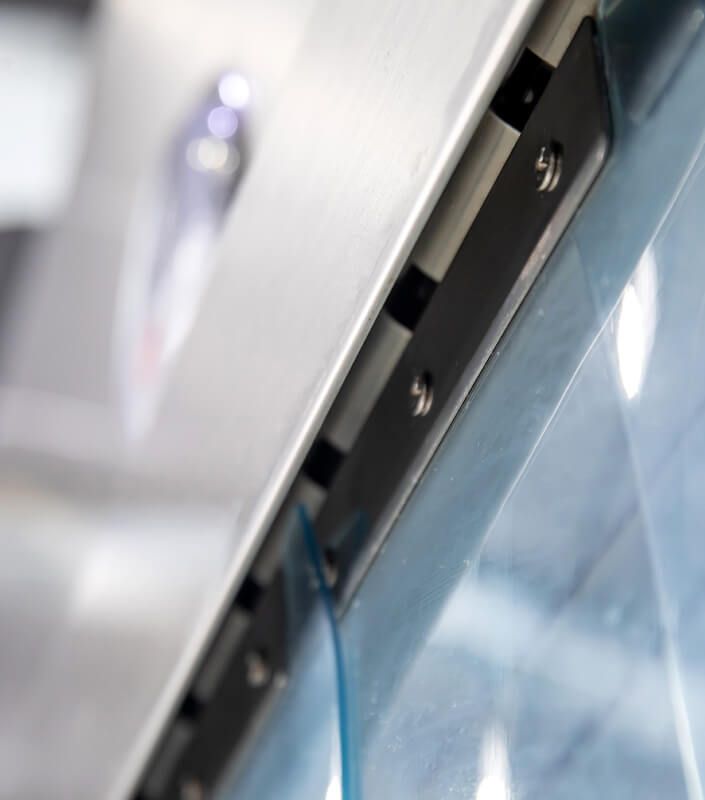

ESD PVC curtains around
Easy to install
Segregate outside pollution
Laminar module Expand as you want
Vertical unidirectional flow for ISO5 area

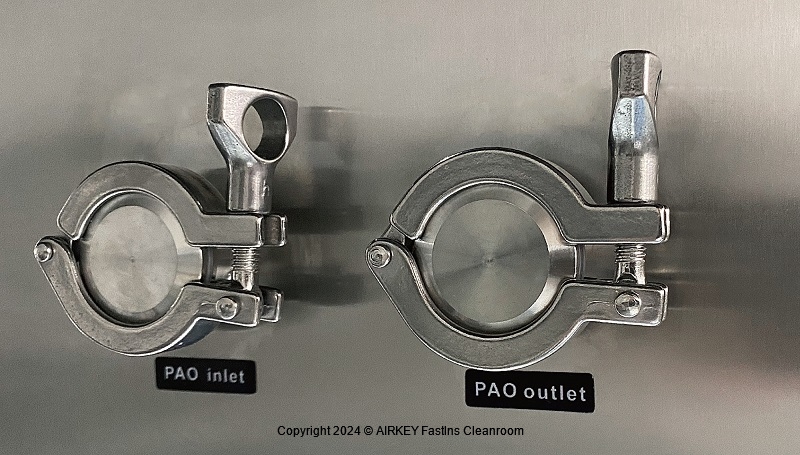

HEPA module with PAO ports

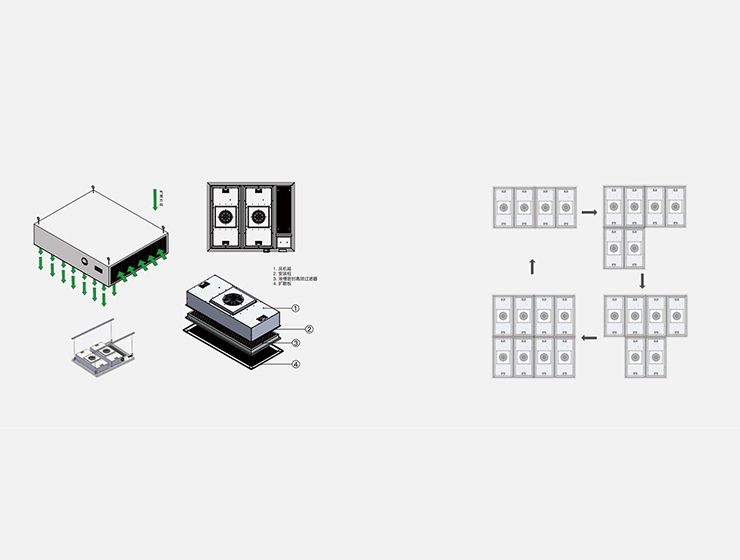

Operating Principle
Laminar Airflow System (LAFS) is a vertical laminar flow area comprised of one or more laminar airflow modules that provides a local ISO 5 dust-free and sterile environment. LAFS can create an ISO Class 5 or better air quality environment for sterile compounding by forming unidirectional HEPA-filtered airflow. The modules can flexibly expand and combine to each other according to actual conditions of working area

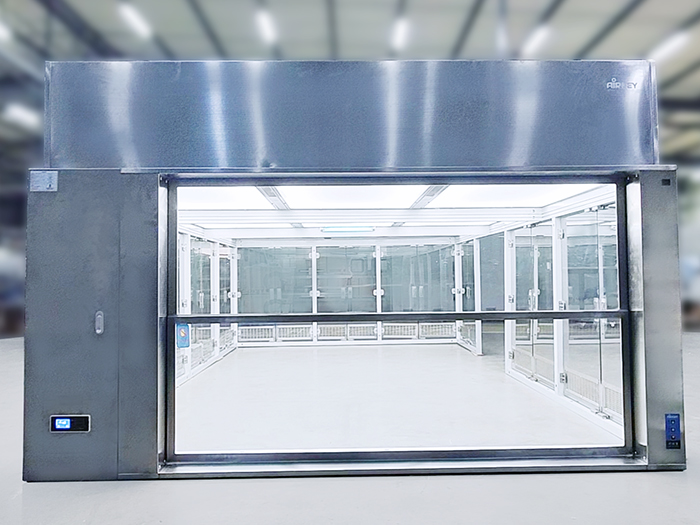

Versatile options
PC/Acrylic/PVC wall, whatever you think, we can make it happen Structure, material, function, everything can be customized

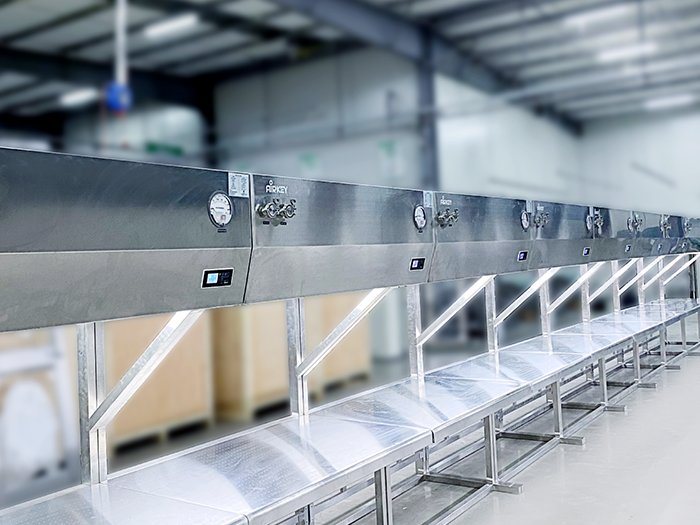

Laminar modules
Unique modules to be freely expanded Combine into a unique downflow world
PAO testing Leakage <0.01%
Clean class test to ensure class 100
Specification
| Model | LAFS-600-1 | LAFS-600-2 | LAFS-600-3 | LAFS-600-4 | LAFS-600-N | |
| External Dimension（L*W) | 1200 * 600mm | 1200 * 1200mm | 1200 * 1800mm | 1200 * 2400mm | 1200 * 600*Nmm | |
| Air Velocity | 0.45±15%m/s | |||||
| Air Filter | G4 | Non-woven pre-filter 50-95%@5μm | ||||
| H14 | Gel-sealed fiber glass H14 hepa filter 99.995%@0.3μm(EN-1822) | |||||
| Voltage | 1P/220V/50Hz or 1P/110V/60Hz | |||||
| Class | ISO 5 （Class A） | |||||
| Noise(dBA) | ≤65 | |||||
| Lux | ≥300 | |||||
| Fan | High efficient backward centrifugal fan | |||||
| Enclosure Material | Stainless Steel 304 | |||||
Product video

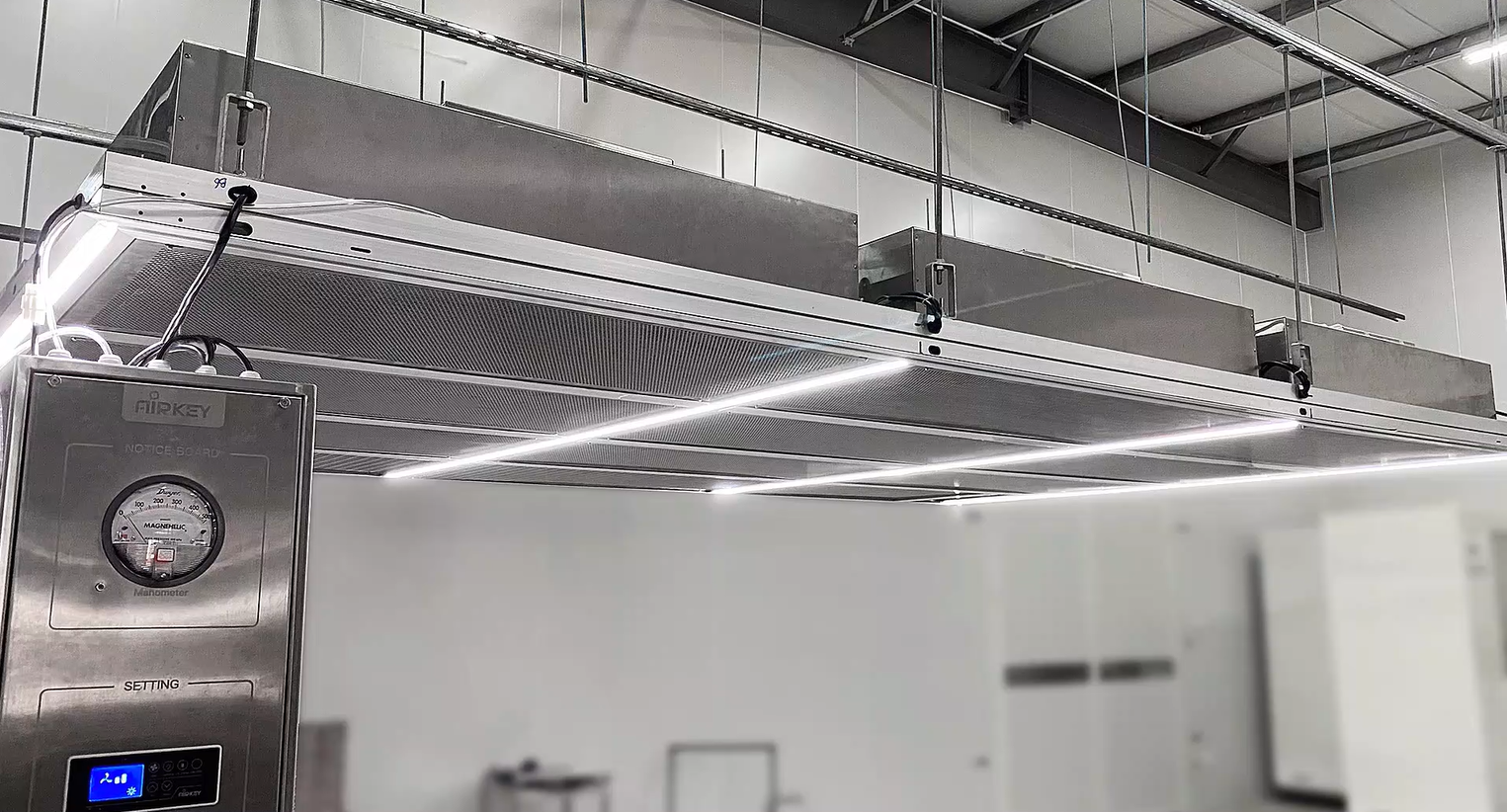

Modular Laminar Air Flow
Gallery
Module laminar air flow for pharmaceutical clean room 1
Module laminar air flow for pharmaceutical clean room 2
Module laminar air flow for pharmaceutical clean room 3
Module laminar air flow for pharmaceutical clean room 4
Module laminar air flow for pharmaceutical clean room 5
Module laminar air flow for pharmaceutical clean room 7
Module laminar air flow for pharmaceutical clean room 8
