Product features
intelligent control
High velocity fan effectively removes dust from ovjects
Interlocked doors to avoid cross contamination
Floor-mounted structure, easy for trolley in and out

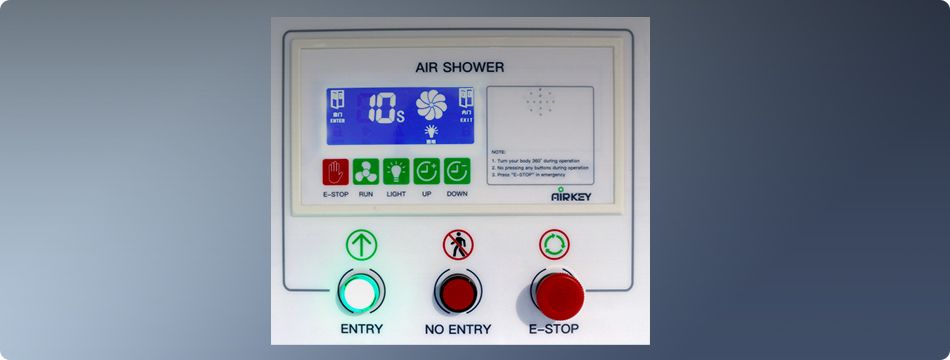

LCD intelligent control panel
Indicator for interlocked doors
Lighting control
Adjustable air shower time

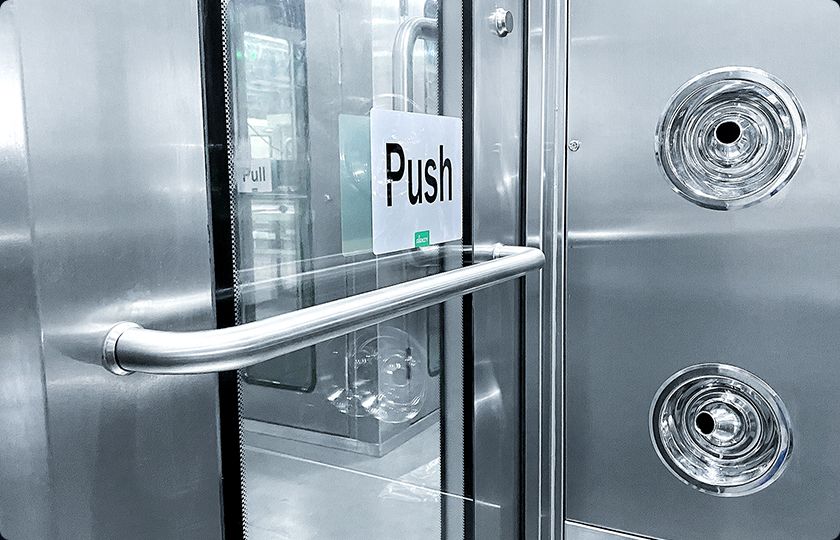

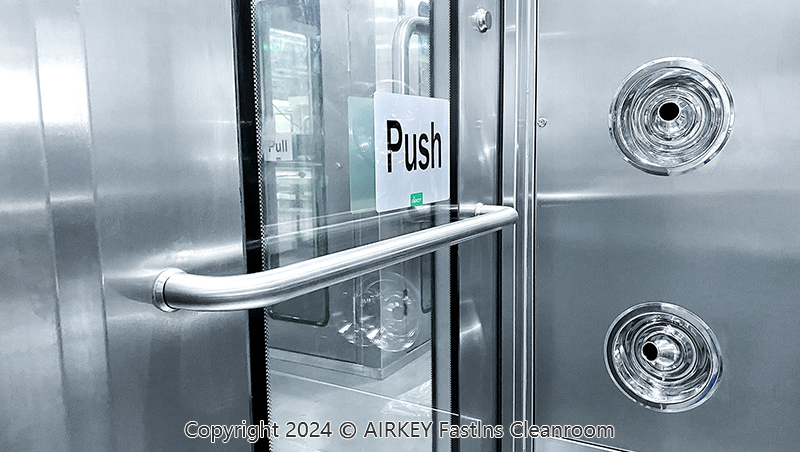

Handles for push and pull
Stainless steel door with double sided tempered glass window.
Beautiful and durable
Ergonomically designed
Handles for push and pull

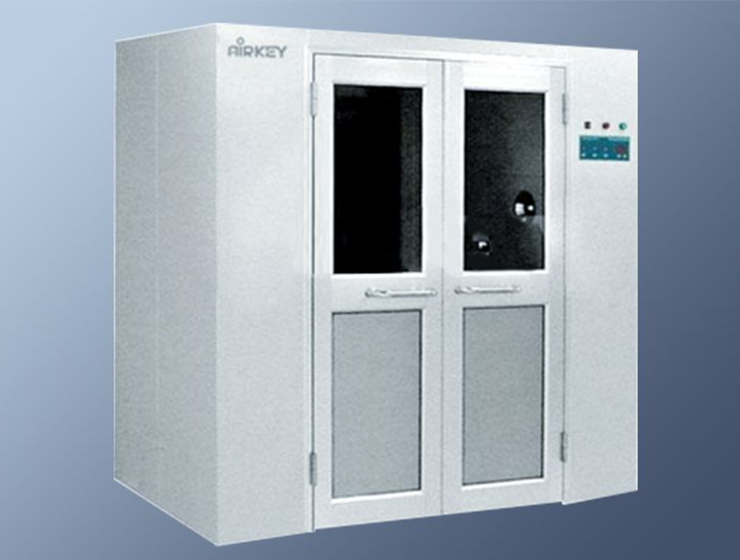

High velocity fan and two-stage filtration system Self-circulation, effective dust removal

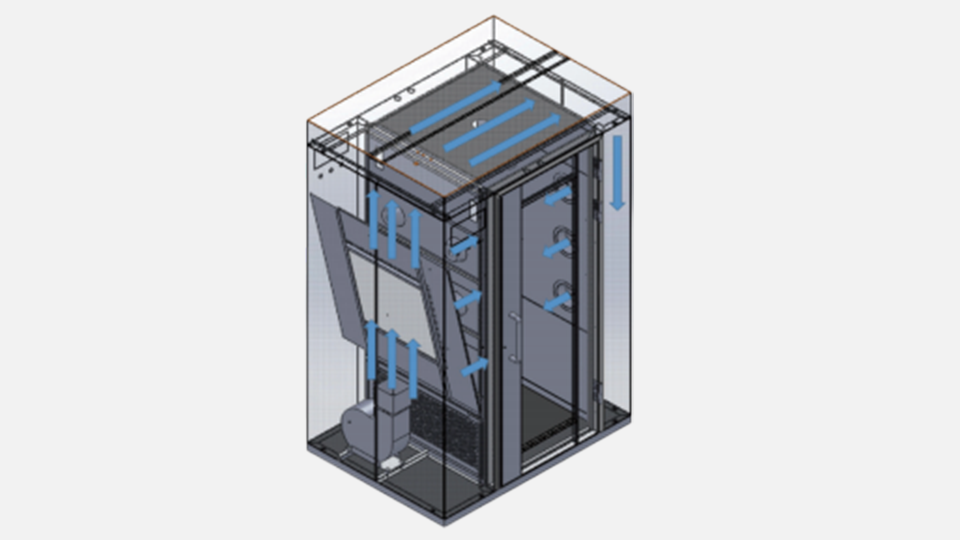

Operation principle
When cargo gets into cargo air shower, infrared inducted air shower activates automatically
and the doors are locked until completion of the decontamination. In this process, blower
gets the air to pass pre-filter and then HEPA filter, to provide high velocity air through the
adjustable stainless nozzles, removing dusts attached to the items, thus avoiding cross
contamination.

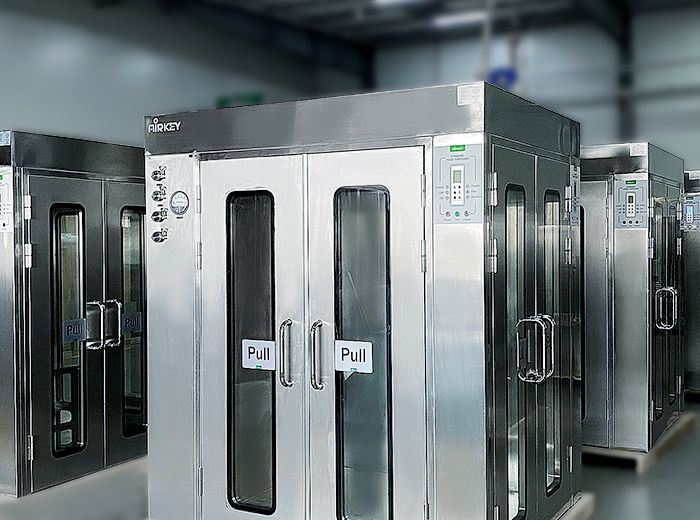

Various metal materials optional,as you wish
Size and layout can be customized
Quick installation,plug-in-and-run

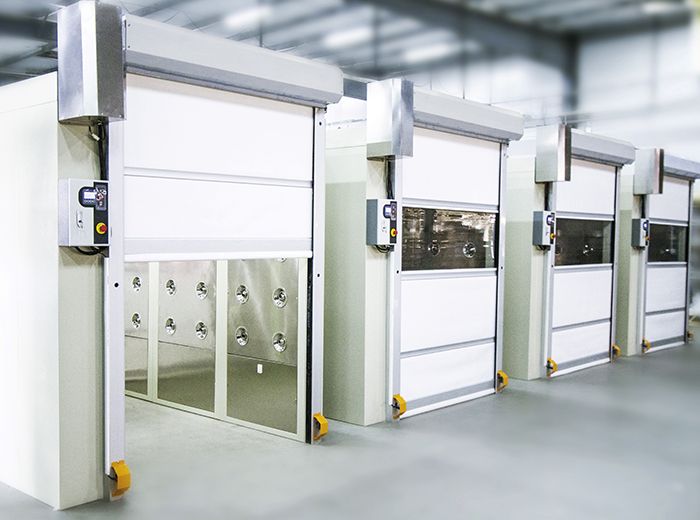

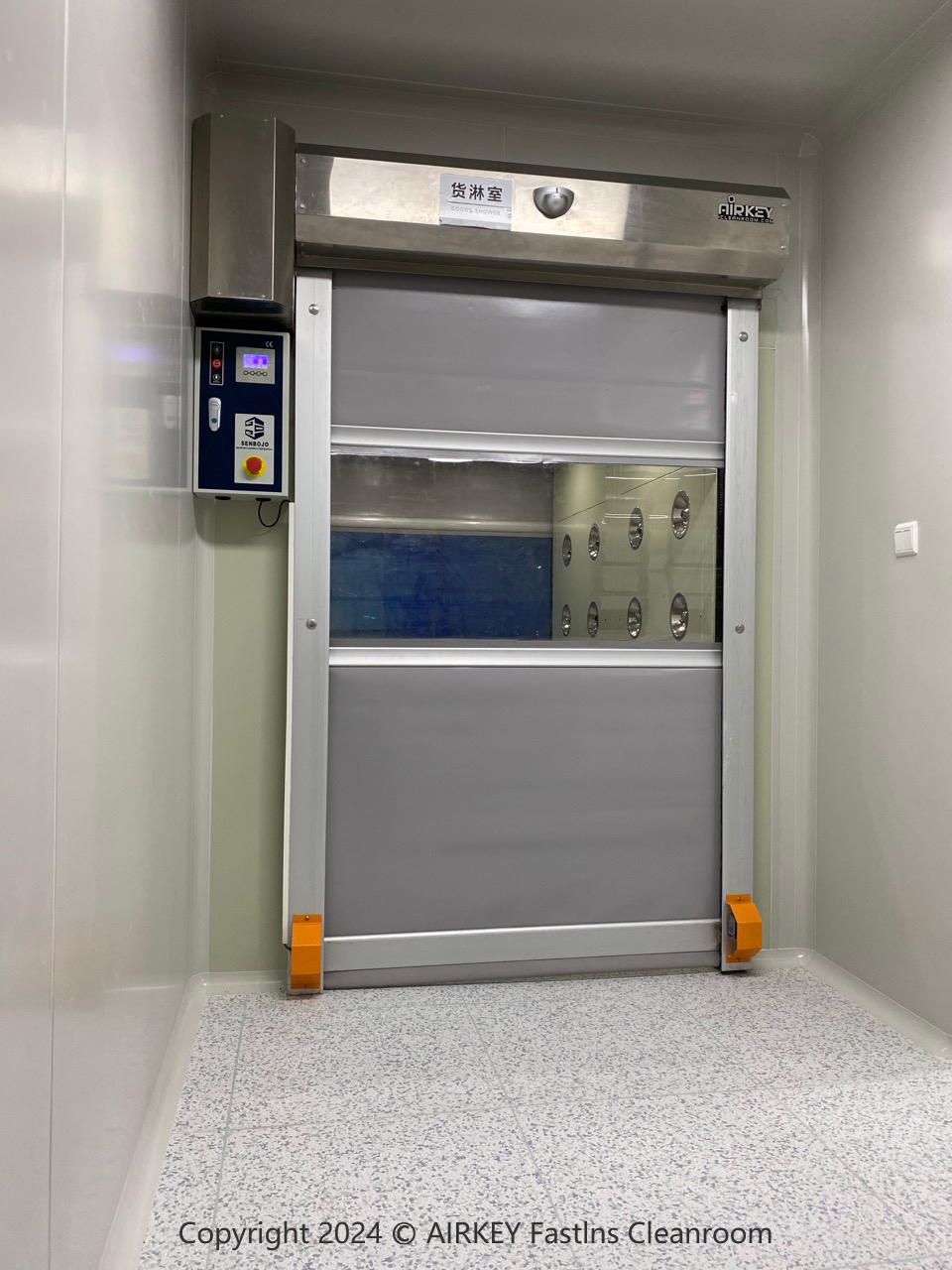

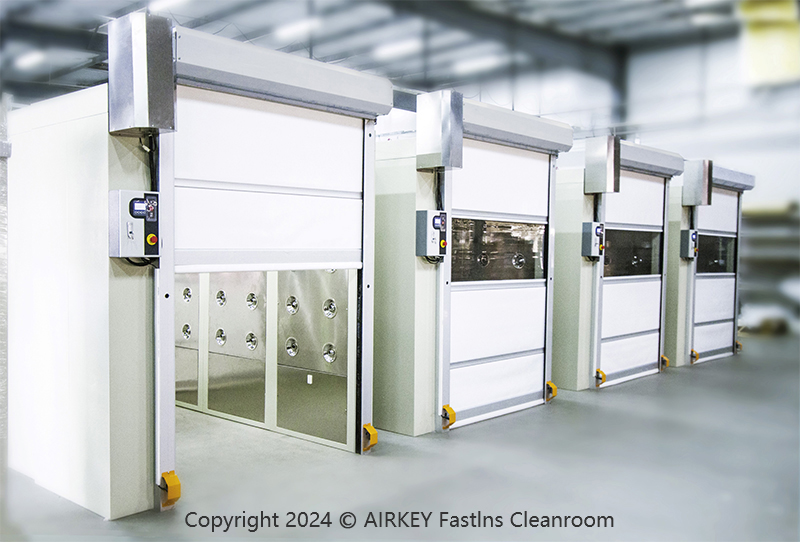

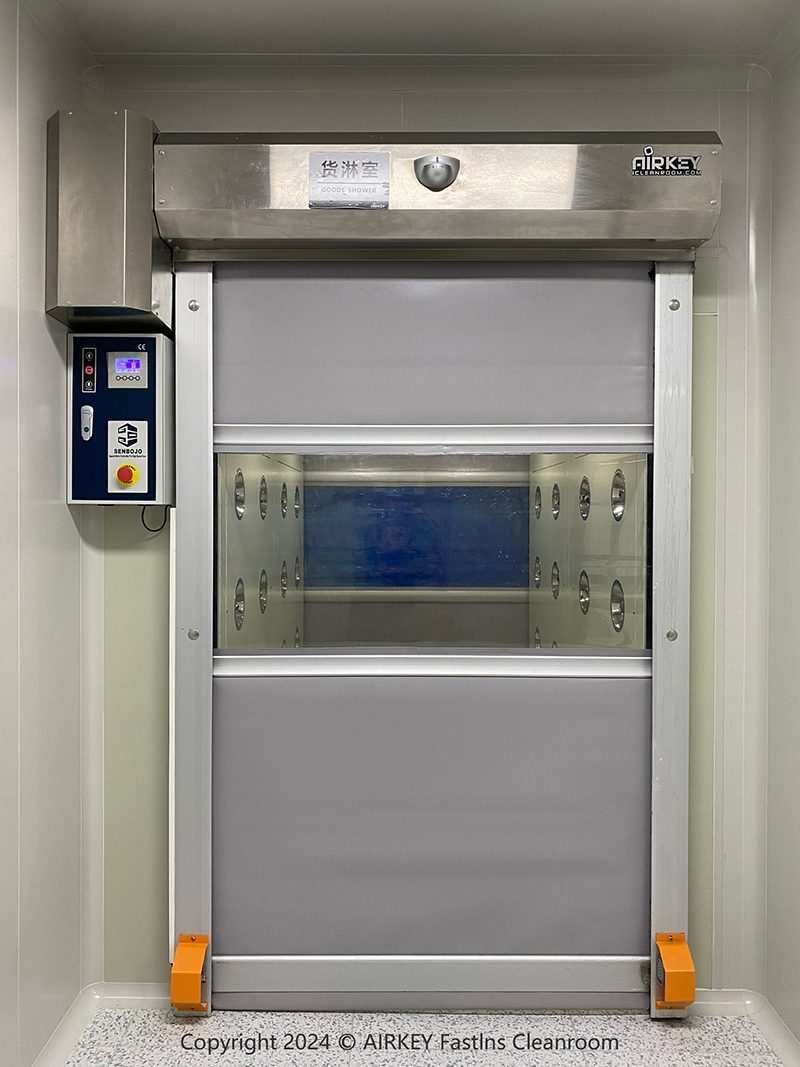

Sliding,roll-up doors,all with unique characteristics
Quick and easy transfer of goods
Size and layout can be customized
Specification
| Model | GAS-1770-1 | GAS-1770-2 | GAS-1770-3 | |
| External Dimension | W1770*D1000*H2095mm | W1770*D2000*H2095mm | W1770*D3000*H2095mm | |
| Internal Dimension | W1200*D920*H1935mm | W1200*D1920*H1935mm | W1200*D2920*H1935mm | |
| Air Velocity | 20-25m/s | |||
| HEPA Filter |
Size | L570 * W570 * H69mm | ||
| Qty | 1 piece | 2 pieces | 3 pieces | |
| Efficiency | H14, 99.995% at 0.3μm certified with ISO Standard 29463 and EN Standard 1822 | |||
| Voltage | 3P/380V/50Hz or 3P/220V/60Hz | |||
| Blower | Specification | 2840r/min Centrifugal Blower | ||
| Qty | ||||
| 1 piece | 2 pieces | 3 pieces | ||
| Max. Consumption | 1120W | 2240W | 3360W | |
| Enclosure Material | Stainless Steel or Powder Coated Steel | |||
| Qty of Nozzles | 12 pieces | 24 pieces | 36 pieces | |
| Door | Specification | Stainless Frames with Acrylic Glass | ||
| Size | W1100 * H1885mm | |||
| Qty | 2 pieces | 2 pieces | 2 pieces | |
