Glove box

Quote

Product features

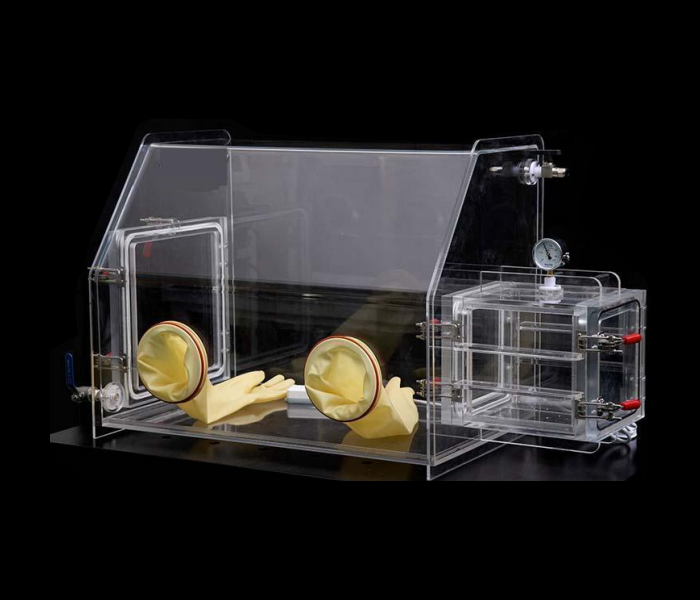

Economical, light, hermetic cabinet Custom size, safe operation

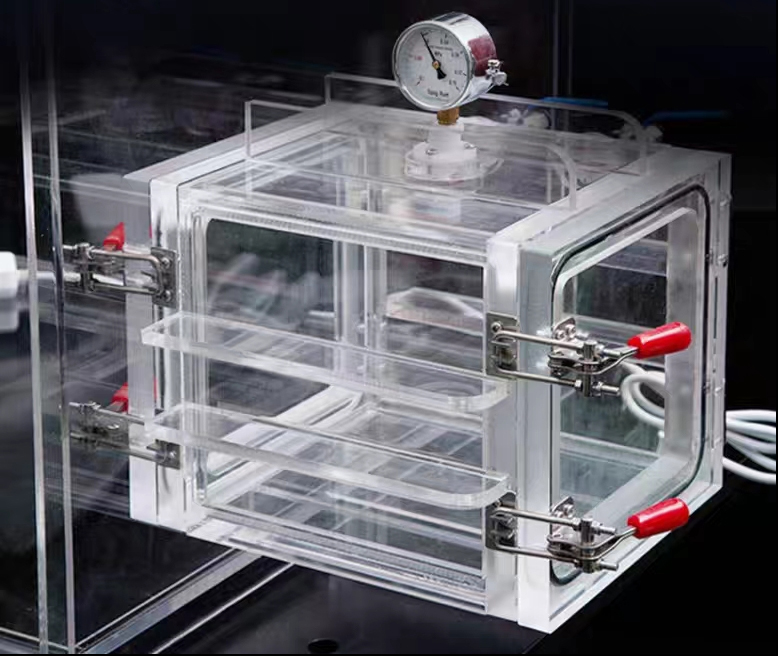

Airlock Pass Box

Minimize nitrogen loss and cross contamination

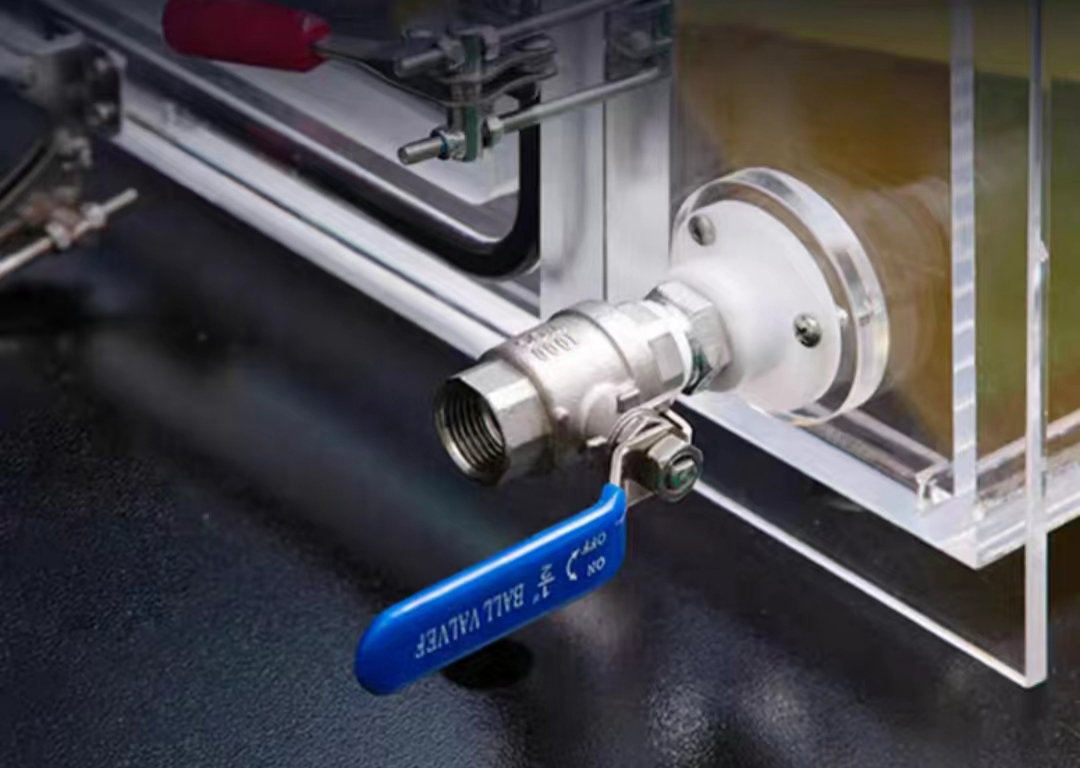

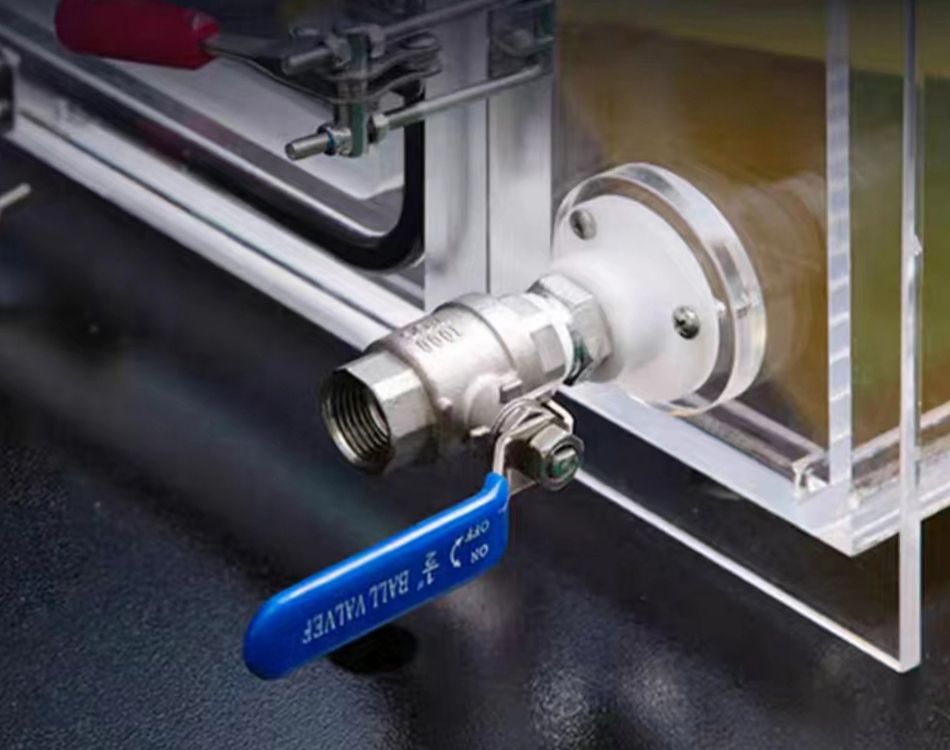

Gas-in port with pressure relief valve

Purge moisture out off the chamber
Safe pressure relief

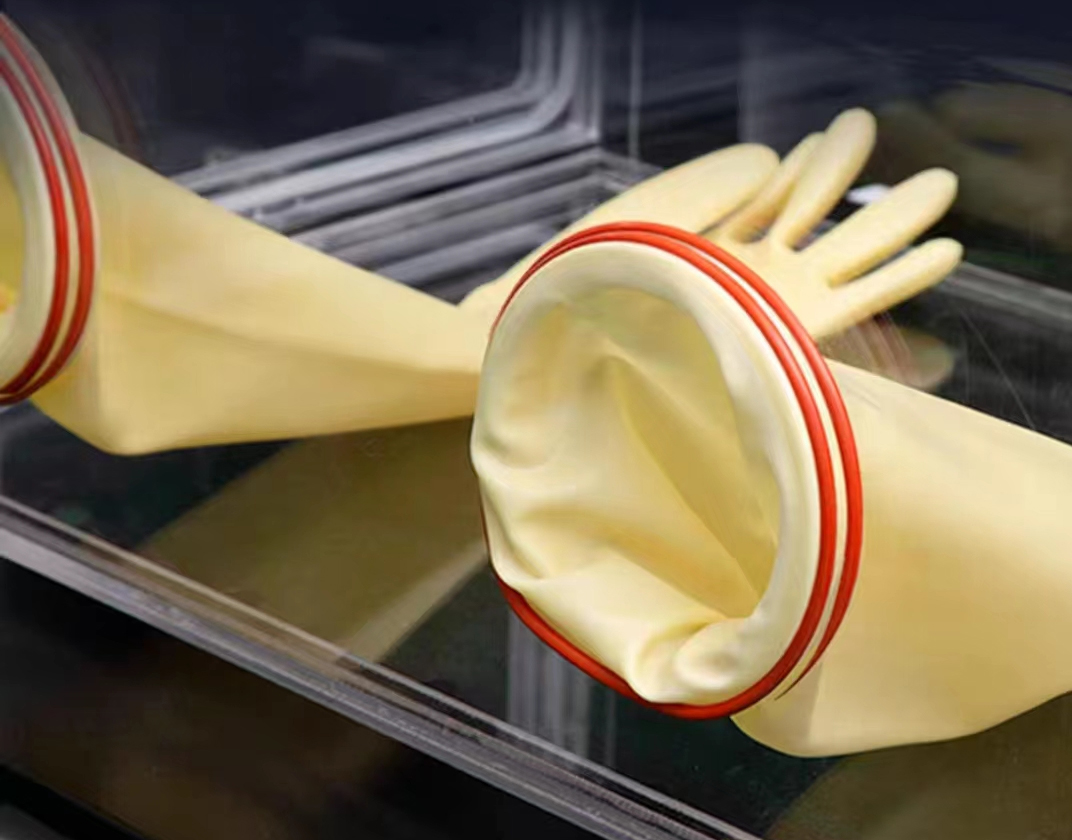

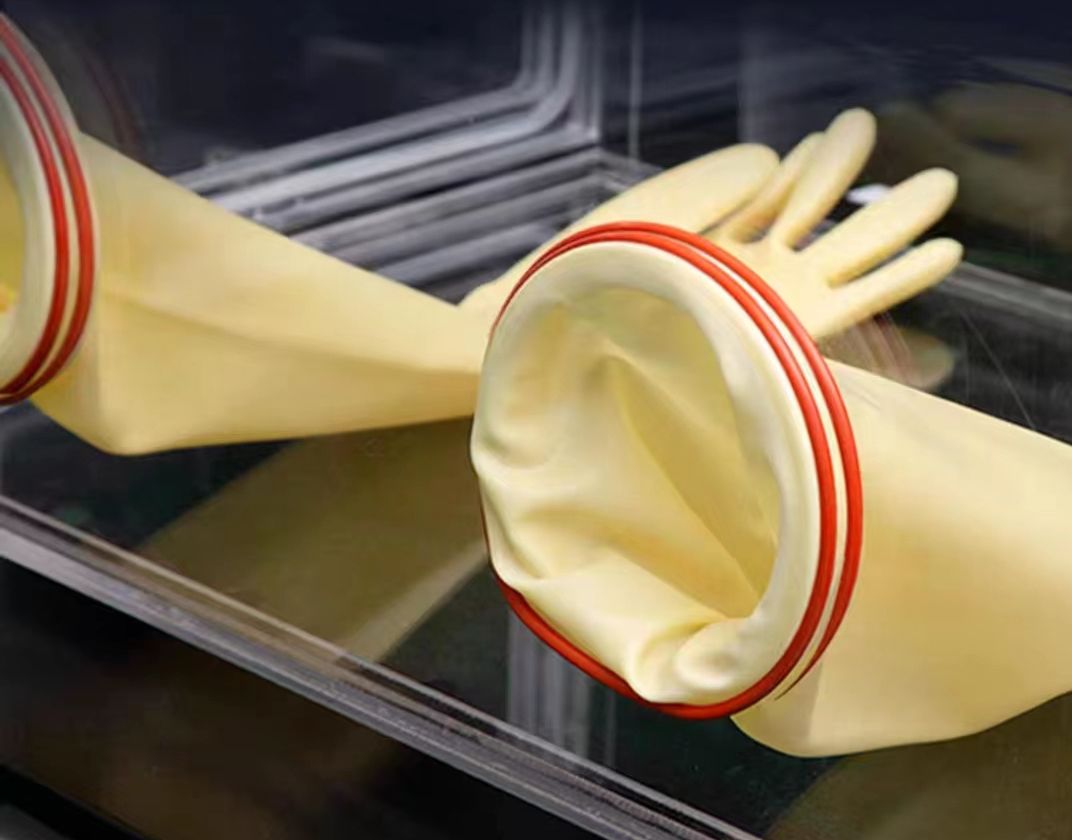

Rubber glove fixed and sealed

Leakage proof and realize non-touch operation

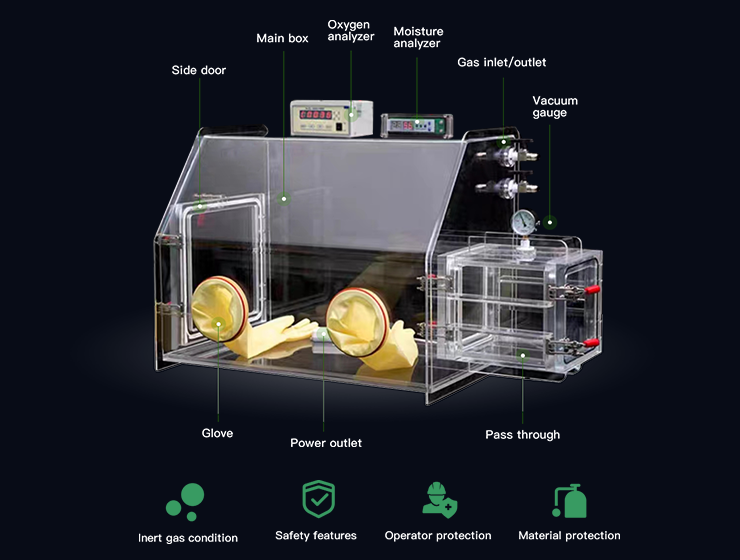

Size custom and accessories optional

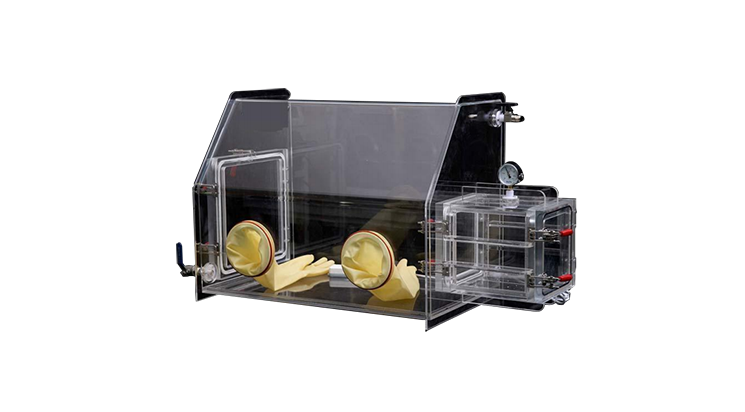

Acrylic Glovebox offers a cost-effective, mobile solution for process that needs a clean,
low-humidity environment. It is featured with lightweight and hermetic cabinet that can be configured with multiple function.

Widely used in new energy, lithium battery, vacuum deposition, laser welding, nuclear industry,
laboratory and other industries, the glovebox can provide a inert gas environment for non-touch operation,
protection for product and/or operators.

1704370933

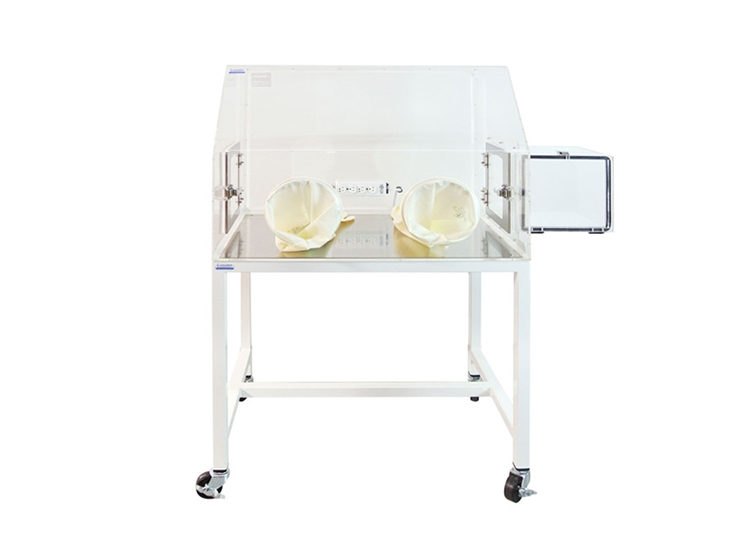

Multiple glasses optional, clear and light

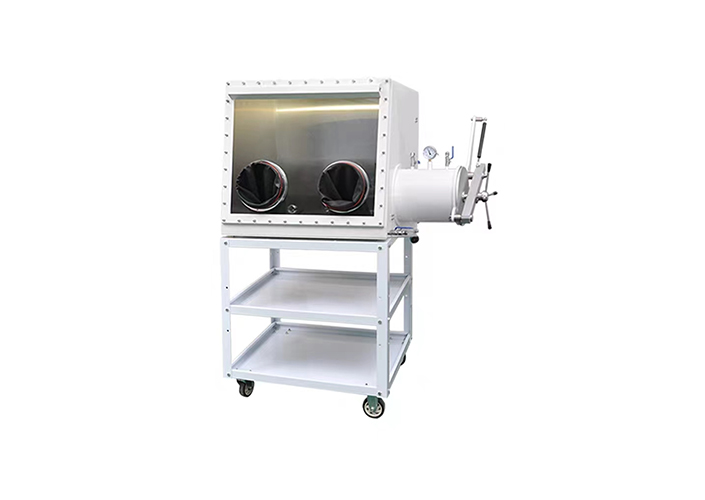

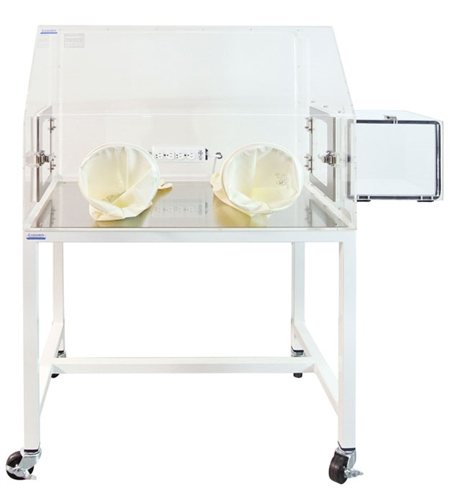

Support custom, including mobile glove box

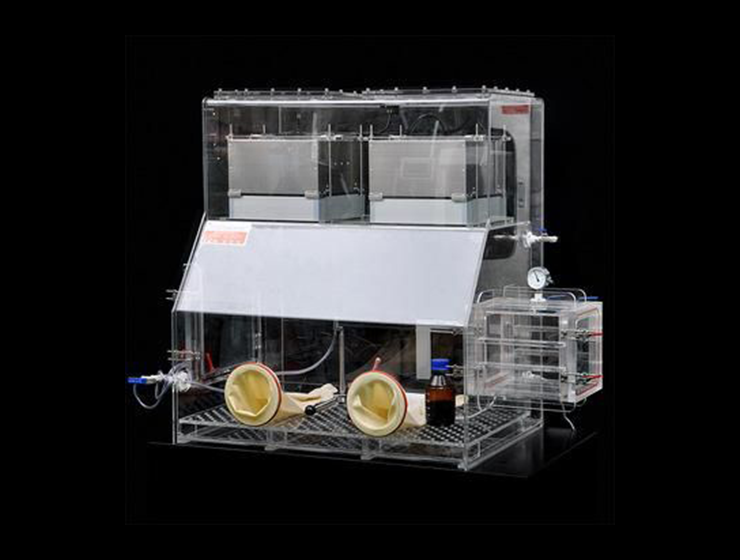

HEPA Module optional Sealing and cleaning all in one

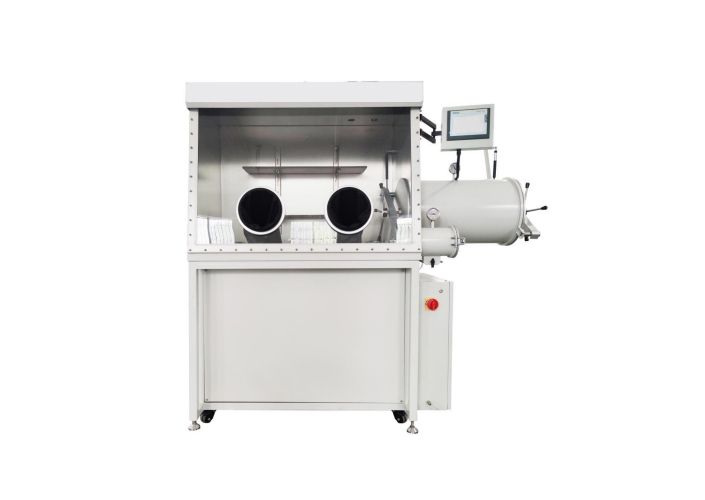

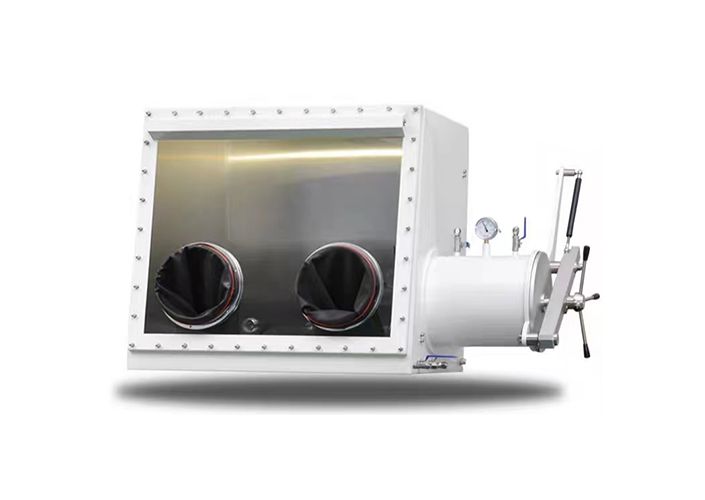

SS304 glove box optional

Chemical resistant and wide application

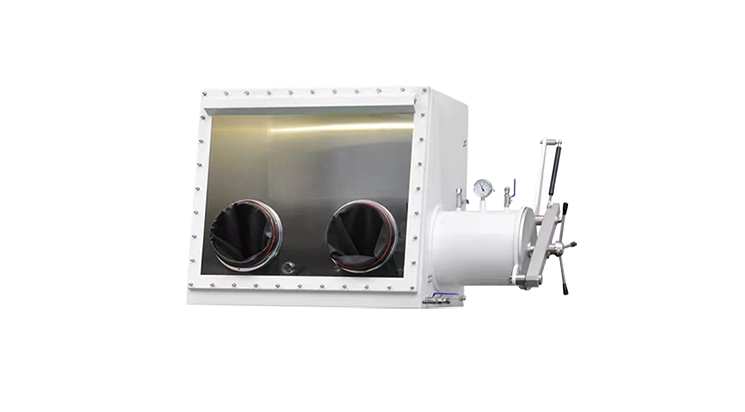

SS304 glove box optional

Chemical resistant and wide application

SS304 glove box optional

Chemical resistant and wide application

Specification

MODEL	MAIN CHAMBER SIZE (mm)	THICKNE SS	PRESSURE	GLOVE PORT	GLOVE	SIDE DOOR (mm)	ANTECHAMBER Size (mm)	ANTECHAMBER VACUUM DEGREE
AGB‐1A	W300D400H500	6mm	±1000PA	145mm port	Latex rubber glove 600mm length	180*180 mm	NONE	NONE
AGB‐2A	W700D450H550					300*300 mm
AGB‐3A	W800D550H600
AGB‐4A	W900D500H500
AGB‐5A	W900D600H700	10 mm		190mm port	butyl glove 800mm length	400*400 mm
AGB‐6A	W1000D750H700
AGB‐7A	W1100D650H600
AGB‐8A	W1200D800H700
AGB‐2B	W700D450H550	6mm	±1000PA	145mm port	Latex rubber glove 600mm length	300*300	W240D240H240	‐0. 1MPa
AGB‐3B	W800D550H600
AGB‐4B	W900D500H500
AGB‐5B	W900D600H700	10 mm		190mm port	Butyl glove 800mm length	400*400
AGB‐6B	W1000D750H700
AGB‐7B	W1100D650H600
AGB‐8B	W1200D800H700
Moisture analyzer: detect humidity in glove box 1‐99%RH				Oxygen Analyzer: Automatic controller for oxygen in glove box, 100PPM‐ 21%RH
Optional: Humidity Automatic Controller: automatic control of air inlet and outlet to maintain set humidity value Automatic Oxygen Controller: automatic control of air inlet and outlet to maintain set oxygen concentration Pressure Automatic Controller: automatic regulation of chamber pressure Vacuum Pump:2L/4L/6L Support Stand: Movable, under glove box for supporting)
