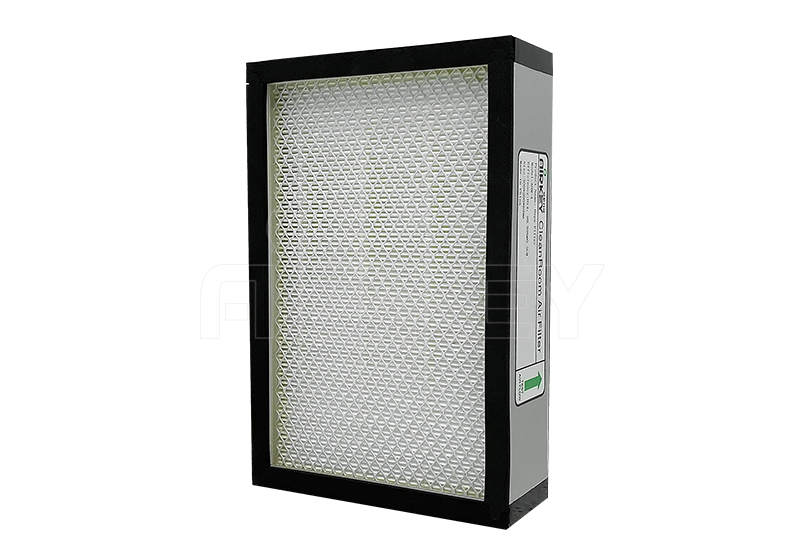

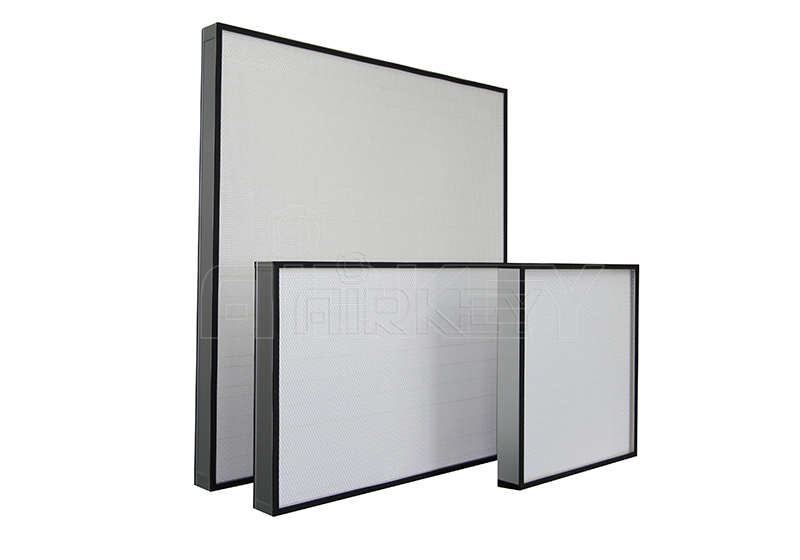

Air Filter
Product features

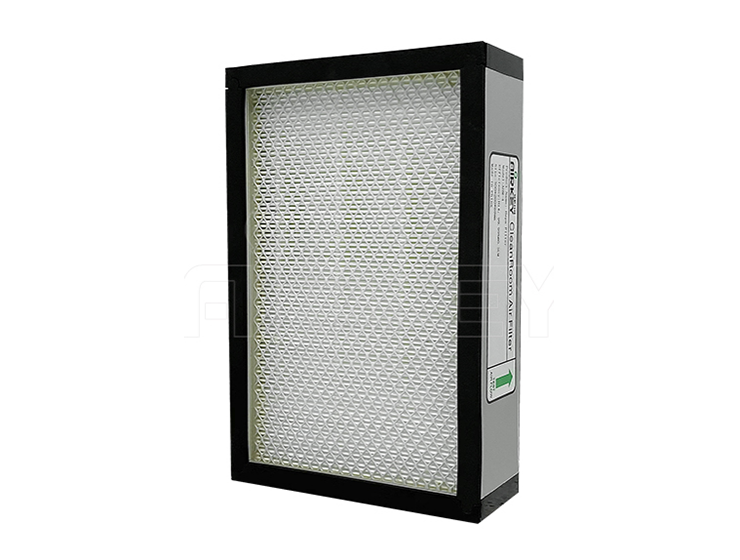

Panel structure with large filter surface and high dust detention
Lightweight and compact with wide applications
Sealant around the structure for high sealing performance

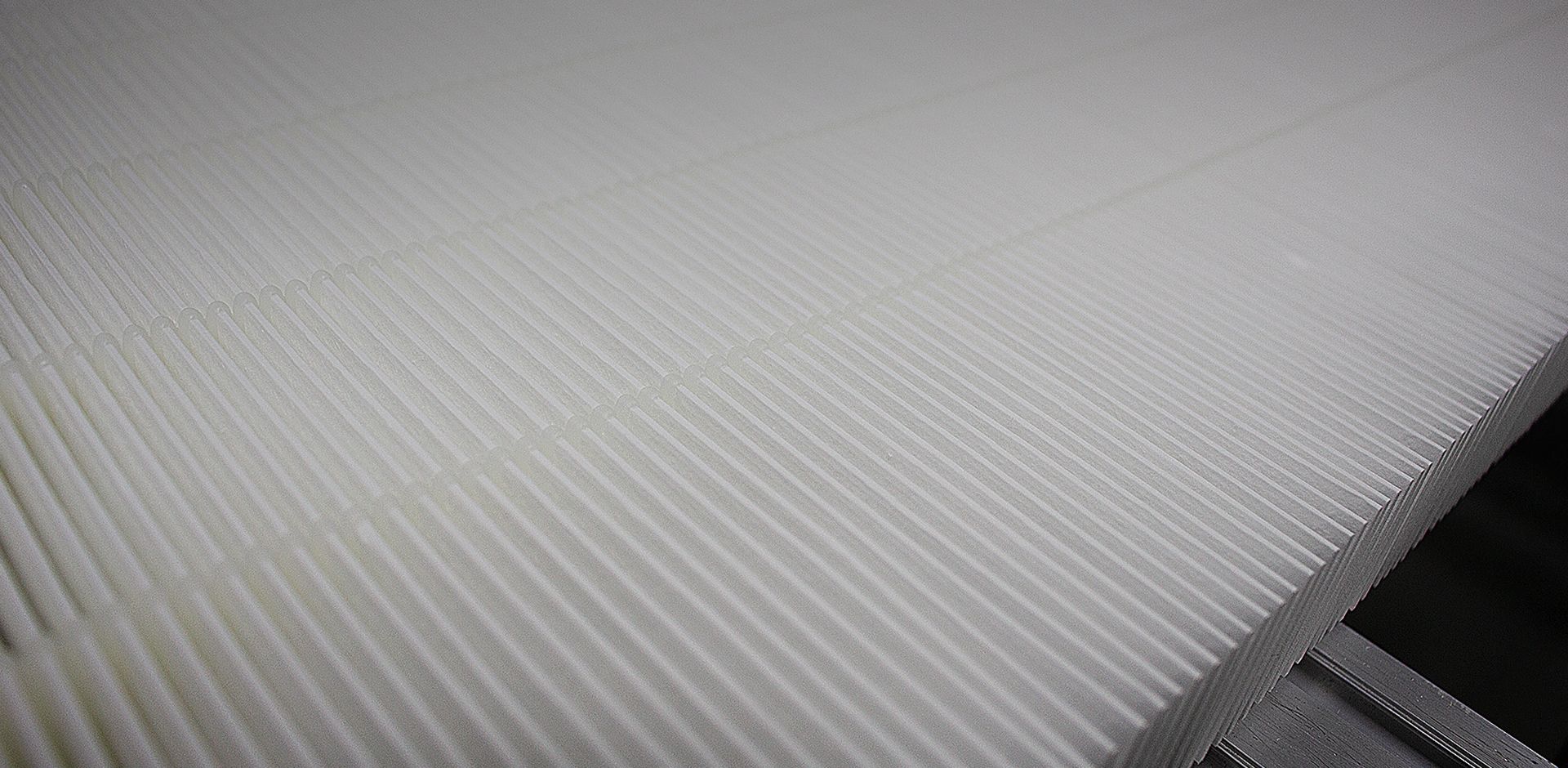

Fiber glass media Water and oil proof, fully functional Fiber glass media

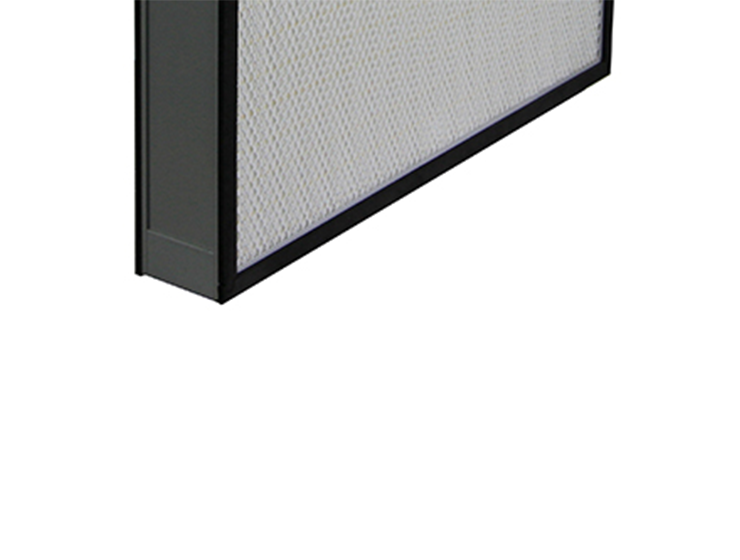

Foamed polyurethane for high sealing performance
Aluminum frame, light yet stable

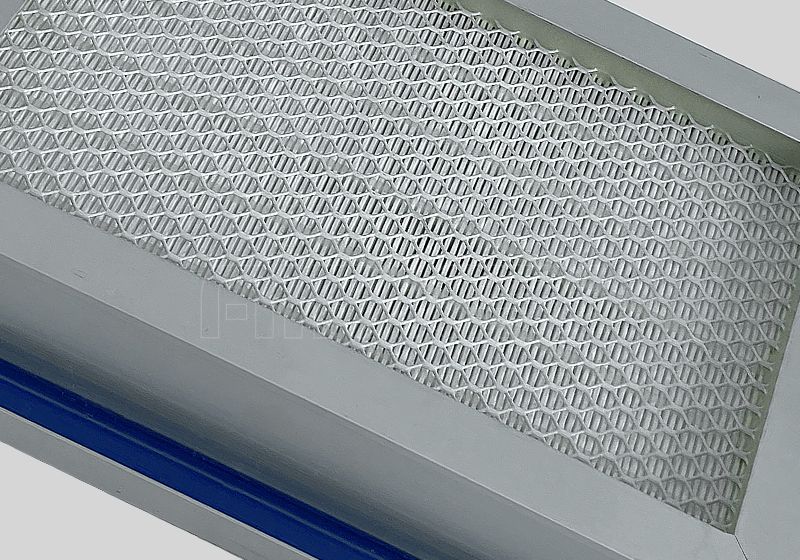

Double steel grid for filter protection
High filter class, ranging from H13 to U17

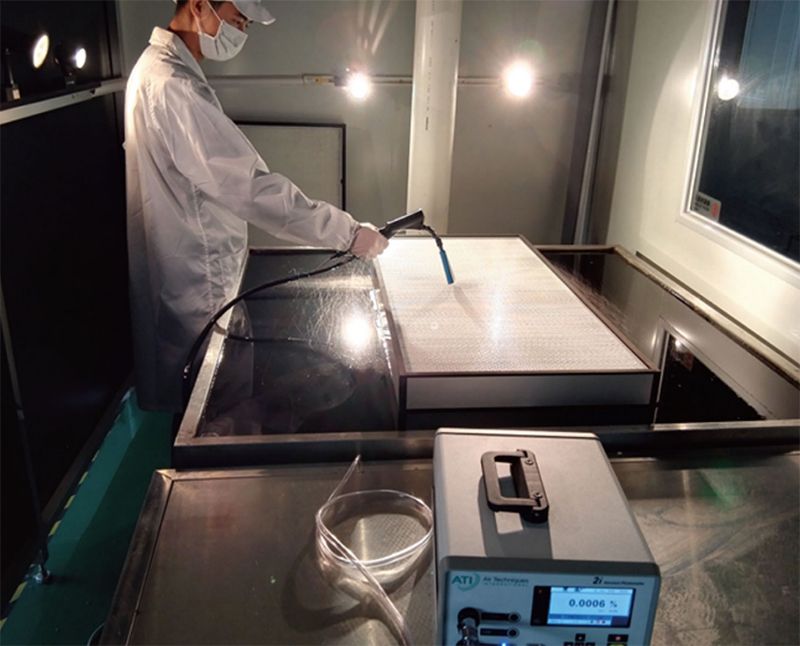

Complete quality check procedures

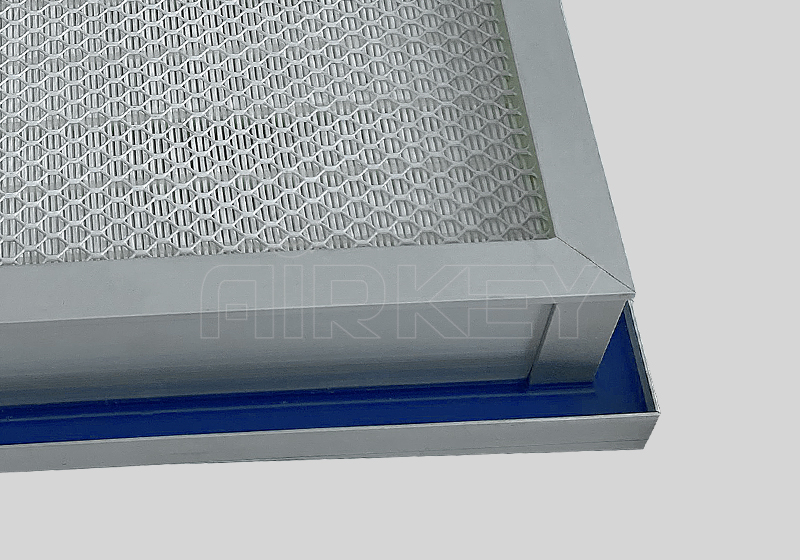

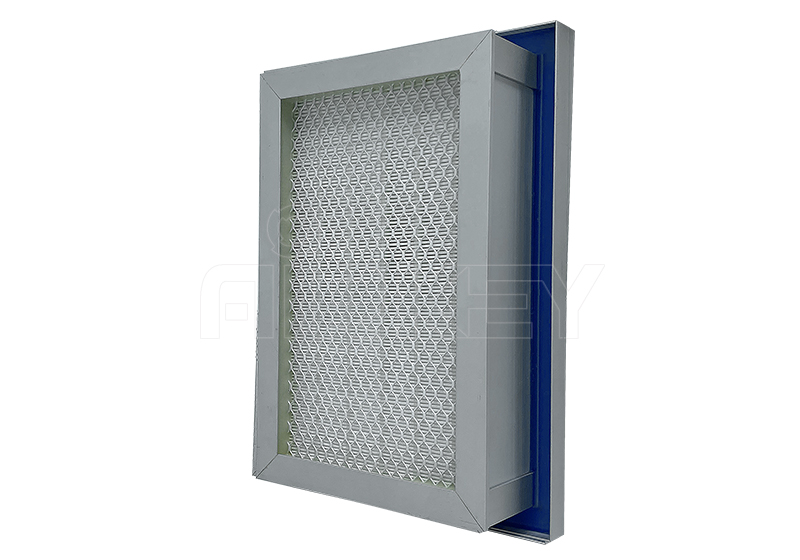

Gel-sealed, PTFE, temperature-resistant, multiple choices

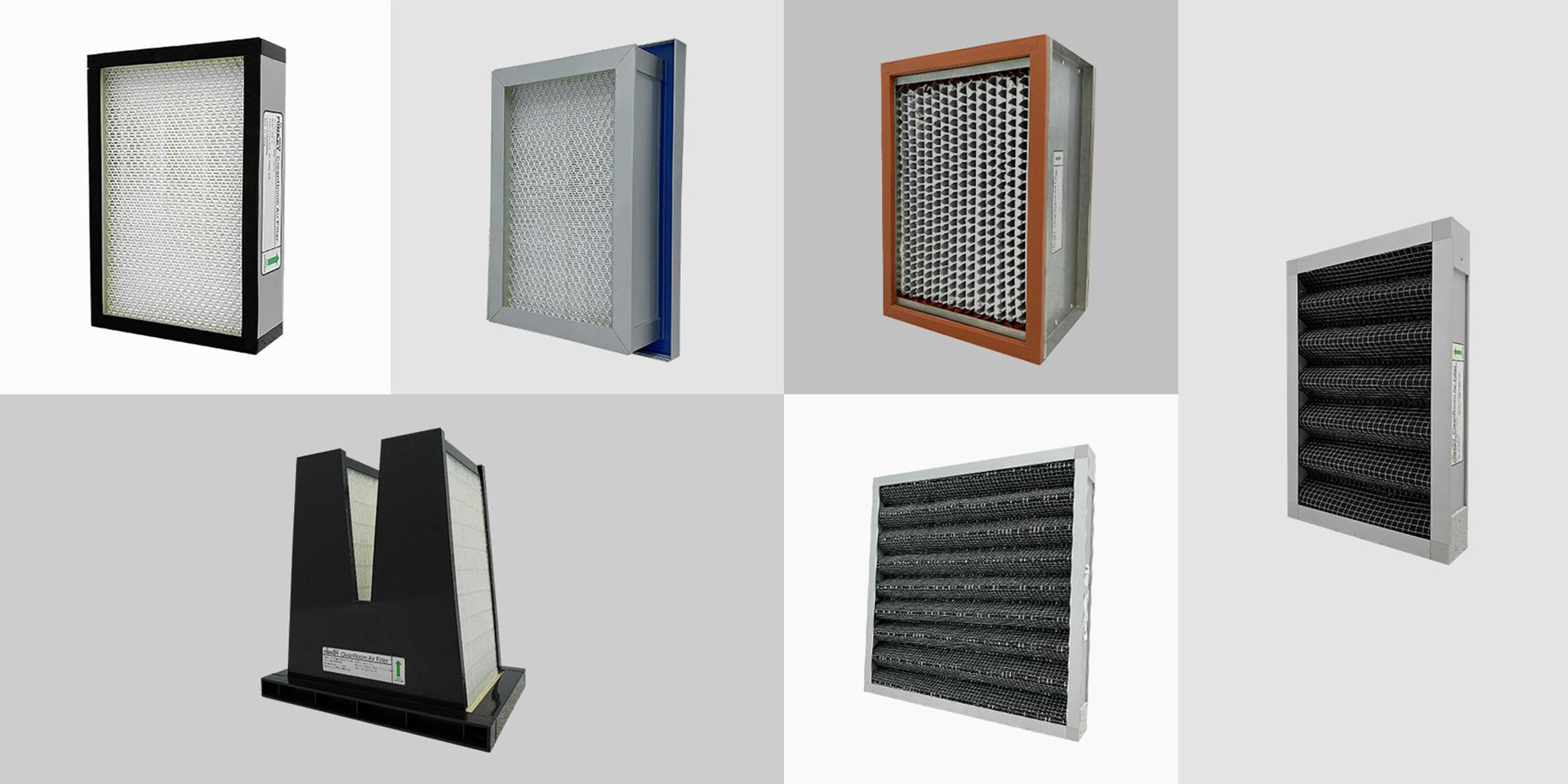

Pre-filter, carbon filter, fine filter, HEPA filter, all optional

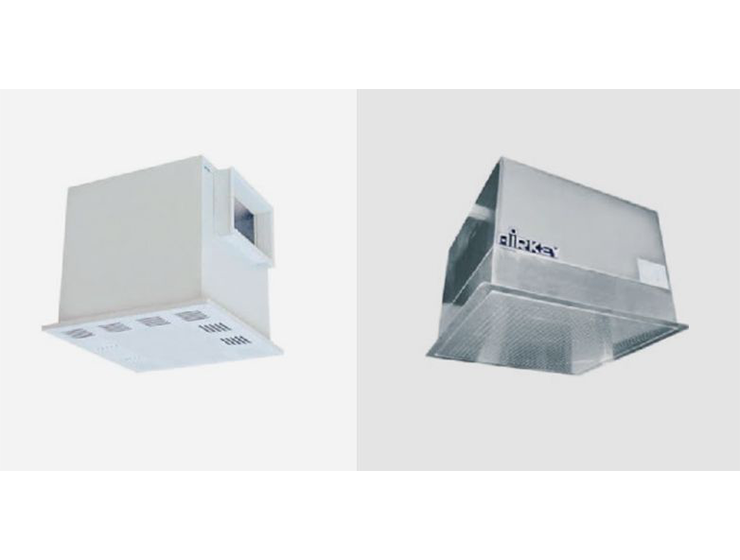

Custom HEPA box Ideal terminal solution for HVAC
Specification
| Model | Dimensions（mm） | Filter Class | Filter Surface
（m2） |
Airflow（m3/h） | Pressure Drop
（Pa） |
||
| L | W | H | |||||
| AHM-H13-1 | 305 | 305 | 69 | H13 | 2.8 | 100-150 | 100-120 |
| AHM-H13-2 | 305 | 610 | 69 | H13 | 5.5 | 200-300 | 100-120 |
| AHM-H13-3 | 570 | 570 | 69 | H13 | 9 | 400-500 | 100-120 |
| AHM-H13-4 | 610 | 610 | 69 | H13 | 11 | 500-600 | 100-120 |
| AHM-H13-5 | 1170 | 570 | 69 | H13 | 20 | 1000-1200 | 100-120 |
| AHM-H14-1 | 305 | 305 | 69 | H14 | 2.8 | 100-150 | 120-150 |
| AHM-H14-2 | 305 | 610 | 69 | H14 | 5.5 | 200-300 | 120-150 |
| AHM-H14-3 | 570 | 570 | 69 | H14 | 9 | 400-500 | 120-150 |
| AHM-H14-4 | 610 | 610 | 69 | H14 | 11 | 500-600 | 120-150 |
| AHM-H14-5 | 1170 | 570 | 69 | H14 | 20 | 1000-1200 | 120-150 |
| AHM-U15-1 | 305 | 305 | 69 | U15 | 2.8 | 100-150 | 140-160 |
| AHM-U15-2 | 305 | 610 | 69 | U15 | 5.5 | 200-300 | 140-160 |
| AHM-U15-3 | 570 | 570 | 69 | U15 | 9 | 400-500 | 140-160 |
| AHM-U15-4 | 610 | 610 | 69 | U15 | 11 | 500-600 | 140-160 |
| AHM-U15-5 | 1170 | 570 | 69 | U15 | 20 | 1000-1200 | 140-160 |
